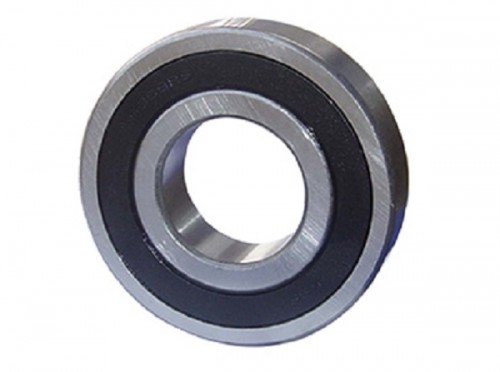

The 6308-2RS is a 40 mm ball bearing that can be used in many applications. 6308-2RS ball bearings have two contact rubber seals located on each side of the ball bearing.
|
6308 2RS bearing rincipal dimension |
|
|
Bearing No. |
6308-Z/2Z/RZ/RS/2RS/2RZ |
|
I.D. |
40mm |
|
O.D. |
90mm |
|
Width |
23mm |
|
Weight(Kg) |
0.63mm |
|
Bore Type |
Straight |
|
Closure Type |
Two Contact Seals |
|
Snap Ring Included |
Without Snap Ring |
|
Internal Clearance |
C0 |
|
Maximum Operating Temperature |
120℃ |
|
Dynamic Load Capacity |
9149.72395743783 lb |
|
Static Load Capacity |
5395.41461863656 lb |
|
Precision Rating |
ABEC 1 |
|
Bearing Material |
Steel |
|
Feature |
Super finished raceways |
|
Quiet operations, Low noise |
|
|
ISO standard interchangeable dimensions |
|
|
Electric Motor Quality (EMQ) |
|
|
Contact seal(s) offer superior lubricant retention and bearing protection from contaminants |
|
|
long life |
|
|
high temperature resistance of motor-bearing |
|
We also supply other bearing no.:
The bearing numbers are as follow: 6204-2RS/ZV3 6205-2RS/ZV3 6206-2RS/ZV3 6306-2RS/ZV3 6308-2RS/ZV3 6309-2RS/ZV3 6311-2RS/ZV3 6312-2RS/ZV3 6313-2RS/ZV3 6314-2RS/ZV3 6406 6407 6408 6409 6412
6200 series and 6300 series used in motors with 3000 r/m, 6305 and 6400 series used in vibration motor.
