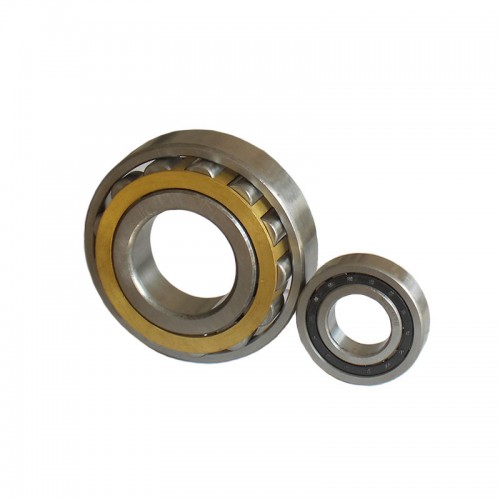

Product Description
|
rincipal dimension |
|
|
Bearing No. |
nup 210 |
|
I.D. |
50mm |
|
O.D. |
90mm |
|
Width |
20mm |
|
Bore Type |
Cylindrical |
|
Number of Rows |
1 |
|
Internal Clearance |
C0 |
|
Ring Separation |
O/R assembly separable I/R |
|
Operating Temperature Range |
Maximum of +300 °F |
|
Dynamic Load Capacity |
16520 lbf |
|
Static Load Capacity |
15620 lbf |
|
Precision Rating |
RBEC 1 (ISO Class Normal) |
|
Feature |
Super finished raceways |
|
Quiet operations, Low noise |
|
|
ISO standard interchangeable dimensions |
|
|
Electric Motor Quality (EMQ) |
|
|
Contact seal(s) offer superior lubricant retention and bearing protection from contaminants |
|
|
long life |
|
|
high temperature resistance of motor-bearing |
|
Cylindrical Roller Bearings can bear one direction radial load, which are larger than radial ball bearing.
Cylindrical Roller Bearings have widely application, as well as in autombile.
