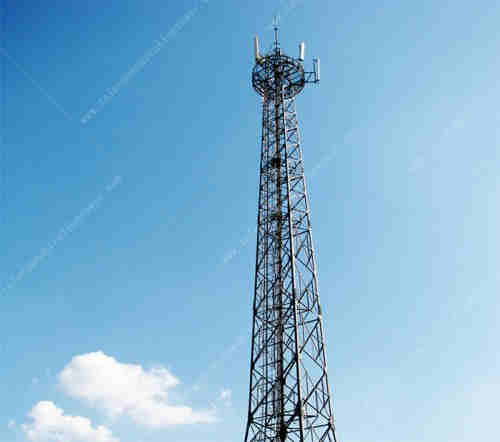

Hot Dip Galvanized Mobile Phone Signal Bts Telecommunication Tower
Product Description
Our company is a professional steel tower manufacturer with ISO certificates based in China.
Supported by the team of professional engineers,technicians,skill workers,we are dedicated to providing our global customers with high quality telecom towers.
The detailed information is specified in the following table.We sincerely look forward to cooperating with you.
1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower.
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum. We are telecom tower manufacturer.
3. Technical Data
|
Design |
|||||||||||
|
1. Design Code |
TIA/EIA-222-G/F |
||||||||||
|
Structure Steel |
|||||||||||
|
2. Grade |
Mild Steel |
High Tensile Steel |
|||||||||
|
GB/T 700:Q235B, Q235C,Q235D |
GB/T1591:Q345B, Q345C,Q3455D |
||||||||||
|
ASTM A36 |
ASTM A572 Gr50 |
||||||||||
|
EN10025: S235JR, S235J0,S235J2 |
EN10025: S355JR, S355J0,S355J2 |
||||||||||
|
3. Design Wind Speed |
Up to 250 km/h |
||||||||||
|
4. Allowable deflection |
0.5 ~1.0 degree @ operational speed |
||||||||||
|
5. Tension strength (Mpa) |
360~510 |
470~630 |
|||||||||
|
6. Yield strength (t≤16mm) (Mpa) |
355 |
235 |
|||||||||
|
7. Elongation (%) |
20 |
24 |
|||||||||
|
8. Impact strength KV (J) |
27(20°C)---Q235B(S235JR) |
27(20°C)---Q345B(S355JR) |
|||||||||
|
27(0°C)---Q235C(S235J0) |
27(0°C)---Q345C(S355J0) |
||||||||||
|
27(-20°C)---Q235D(S235J2) |
27(-20°C)---Q345D(S355J2) |
||||||||||
|
Bolts & Nuts |
|||||||||||
|
9. Grade |
Grade 4.8, 6.8, 8.8 |
||||||||||
|
10. Standards for mechanical properties |
|||||||||||
|
10.1 Bolts |
ISO 898-1 |
||||||||||
|
10.2 Nuts |
ISO 898-2 |
||||||||||
|
10.3 Washers |
ISO 6507-1 |
||||||||||
|
11. Standards for Dimensions |
|||||||||||
|
11.1 Bolts |
DIN7990, DIN931, DIN933 |
||||||||||
|
11.2 Nuts |
ISO4032, ISO4034 |
||||||||||
|
11.3 Washers |
DIN7989, DIN127B, ISO7091 |
||||||||||
|
Welding |
|||||||||||
|
12. Method |
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
||||||||||
|
13. Standard |
AWS D1.1 |
||||||||||
|
Marking |
|||||||||||
|
14. Method of marking of the members |
Hydraulic Press Stamping |
||||||||||
|
Galvanizing |
|||||||||||
|
15. Galvanization standard of steel sections |
ISO 1461 or ASTM A123 |
||||||||||
|
16. Galvanization standard of bolts and nuts |
ISO 1461 or ASTM A153 |
||||||||||
|
