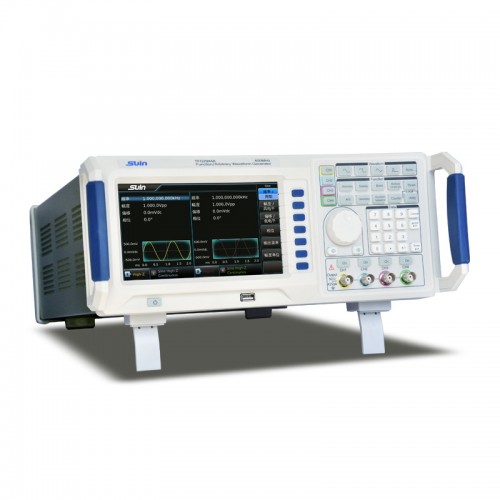

     TFG2900A Series    frequency generators for sale     Economical Signal Generator



    Overview

    TFG2900A series has 6 functions, including function generator, any waveform generator, noise generator, pulse generator, harmonic generator and frequency counter. The series includes dual and four channel models, which are completely equal.



    Model Selection

    TFG2922A/2932A/2942A

    TFG2924A/2934A/2944A



    Function/Arbitrary waveform Generators Specification

    Model

    TFG2922A

    TFG2924A

    TFG2932A

    TFG2934A

    TFG2942A

    TFG2944A

    Channel

    2

    4

    2

    4

    2

    4

    Frequency

    Sine

    1μHz~200MHz

    1μHz~30MHz

    1μHz~400MHz

    Square

    1μHz~120MHz

    Pulse

    1μHz~80MHz

    Ramp

    1μHz~6MHz

    Others

    1μHz~50MHz

    Resolution

    1μHz

    Accuracy

    ±1ppm

    Waveform

    Type

    165 kinds include: Sine, Square, Ramp, Pulse, Noise,DC, PRBS, bulit-in arbitrary waveforms and user-defined harmonic, etc.

    Sample Rate

    1.2GSa/s

    Vertical Resolution

    14 bits

    Arbitrary

    Sample

    Rate

    1uSa/s~200MSa/s

    Length

    2 ~ 32M points

    Resolution

    14 bits

    Square

    Rise/Fall

    Time

    ≤2.5ns

    Duty

    Cycle

    0.01％~99.99％

    Pulse

    Rise/Fall

    Time

    2.5ns ~1.2s

    Width

    4ns~(1000000s ~4ns)

    Sine Spectral Purity

    Total Distortion

    ≤0.2% (20Hz~20kHz, 20Vpp)

    Phase Noise

    <-140dBc @ 10MHz (0dBm, 10kHz offset)

    Amplitude

    Range

    (50Ω

    load)

    f≤40MHz

    1mVpp~10Vpp

    f≤100MHz

    1mVpp~5Vpp

    f≤200MHz

    1mVpp~2Vpp

    f≤300MHz

    1mVpp~1.5Vpp

    f>300MHz

    1mVpp~1Vpp

    Accuracy

    ±(1％of setting＋1mVpp), (Sine 1kHz，0V offset，≥10mVpp)

    Offset

    Range

    ±5Vpk ac+dc (50Ω load)

    Accuracy

    ±(1%of setting+2mV+0.5% of amplitude)(High-Z)
