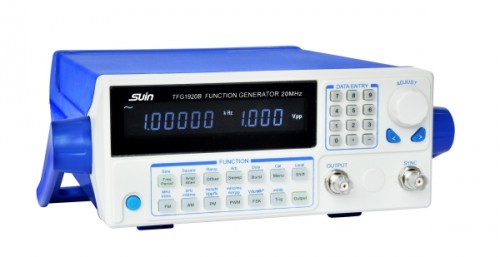

TFG1900B Series low cost function generator
Visits: 42
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: SUIN
    Specifications: 1
    Type New
    Date: 04-12-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     TFG1900B Series     low cost function generator     Arbitary Waveform Generator Price



    SUIN Low Cost Function Generator Features

    * Simple structure and highly cost-effective

    * Output 16 waveforms

    * AM,FM,PM,PWM and FSK modulation

    * Provide frequency sweep and burst

    * Standard configuration interface: USB Device




    Specifications



    TFG1903B

    TFG1905B

    TFG1910B

    TFG1920B

    Frequency

    Range

    Sine

    10μHz ~ 3MHz

    10μHz ~ 5MHz

    10μHz ~ 10MHz

    10μHz ~ 20MHz

    Square

    10μHz ~ 5MHz

    Others

    10μHz ~ 1MHz

    Resolution

    10μHz

    Accuracy

    ±50ppm

    Waveform

    Type

    16 waveform, Sine, Square, Ramp, Exp, Log, Noise, etc.

    Length

    1024 points

    Sampling Rate

    100 MSa/s

    Vertical Resolution

    8 bits

    Sine

    Harmonic Distortion

    ≤-40dBc(≤5MHz);

    ≤-35dBc(>5MHz)

    Total Distortion

    ≤0.5% (20Hz ~ 20kHz, 20Vpp)

    Square

    Rise/Fall Edge Time

    ≤35ns        Overshoot: ≤ 10 %

    Duty Cycle

    0.1% ~ 99.9%

    Ramp

    Symmetry

    0.0% ~100.0%

    Amplitude

    Range

    Frequency≤8MHz

    0 ~ 10Vpp(50Ω),0 ~ 20Vpp(Open circuit)

    Frequency>8MHz

    0 ~ 9Vpp(50Ω), 0 ~ 18Vpp(Open circuit)

    Resolution

    5mVpp(Amplitude>2Vpp)

    0.5mVpp(Amplitude≤2Vpp)

    DC Offset (Ampl.   0Vpp)

    Range

    ±5Vdc (50Ω), ±10Vdc (Open circuit)

    Resolution

    5mVdc

    Modulation

    FM,AM,

    Carrier Waveform

    16 waveforms, Sine, Square, Ramp, etc.

    (only Pulse for PWM)

    PM,PWM

    Modulating Waveform

    16 waveforms, Sine, Square, Ramp, etc.

    Modulating Frequency

    40mHz ~ 20kHz

    FSK

    Carrier Waveform

    16 waveforms, Sine, Square, Ramp, etc.

    Modulating Waveform

    Square

    FSK Rate

    40mHz ~ 100kHz

    Frequency Sweep

    Type

    Linear or Logarithmic

    Sweep Time

    50ms ~ 500s

    Trigger Source

    Internal/External/Manual

    Burst

    Burst Waveform

    16 waveforms, Sine, Square, Ramp, etc.

    Burst Count
