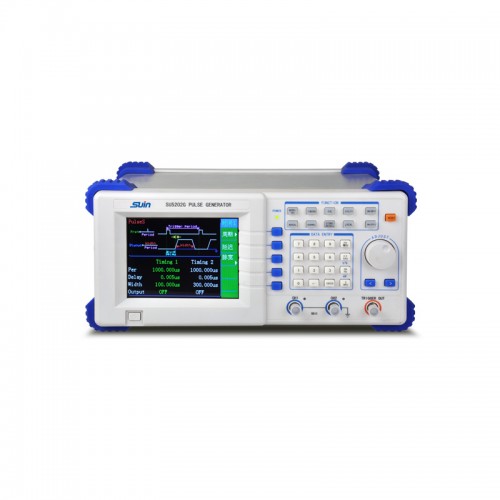

SU5000 Series Digital Pattern Generators Pulse Pattern Generators
Visits: 46
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: SUIN
    Specifications: 1
    Type New
    Date: 04-12-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     SU5000 Series  Digital Pattern Generators     Pulse Pattern Generators    Digital Signal Generator



    SUIN Digital Pattern Generators Features

    * Direct Digital Synthesis Technology

    * Crystal Oscillation Reference

    * High Accurate Time and Frequency

    * Count burst or single burst both can be selected

    * Multiple output channels and EXT

    * Trigger/Frequency Standard Input channels

    * Data Storage and Recall

    * Optional GPIB and USB interface



    Specifiations



    SU5101/5102

    SU5202G

    SU5302

    SU5303

    Channel

    1/2

    2

    2

    1

    Waveform

    Pulse

    Single/Dobule, Logic Positive /Negative, Positive/Negative Polary

    Single/Dobule, Logic Positive /Negative

    Logic Positive /Negative

    Edge Time

    ≤10ns

    ≤10ns

    8ns ~ 1ms

    8ns ~ 1ms

    Overshoot

    ≤ 10%

    ≤ 10%

    ≤ 10%

    ≤ 5%

    Time

    Pulse Period

    20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz)

    Time Interval

    5ns ~ 10000s

    8ns ~ 9999.5s

    Resolution

    5ns (Low range), 10μs (High range)

    0.1ns(typical)

    Interval Error

    ± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs)

    (High range)

    ±(T×5×10-5+5ns)







    Pattern





    N/A

    Length:4095bits

    Length:16384bits

    Format:NRZ

    Format:NRZ, RZ

    Rate:100mHz ~ 50MHz

    Rate:2mHz ~ 50MHz

    Resolution: 0.1Hz



    Amplitude Offset

    Amplitude Range

    50mV ~ 10V

    (High Z)

    50mV ~ 5V (50Ω)

    50mV ~ 5V (50Ω)

    50mV ~ 5V (50Ω)

    Offset Range

    50mV ~ 10V

    (High Z)

    50mV ~ 5V (50Ω)

    50mV ~ 5V (50Ω)

    -5V~ 5V (50Ω)

    Output Impedance

    50Ω

    TTL

    TTL/COMS Level

    Low Level≤ 0.3V, High Level≥3.0V (high impedance load)

    Output Impedance

    50Ω

    Burst

    Burst Count

    2 ~ 65000 cycles

    Burst Mode

    Continuous, Signle

    EXT. STD Input

    Frequency

    10M mutiple

    Amplitude

    0.5-5Vpp, AC coupling

    Trigger

    Trigger Mode

    Internal, External, Manual

    Ext. Trigger Input

    Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp

    Input Impedance

    ≥100kΩ
