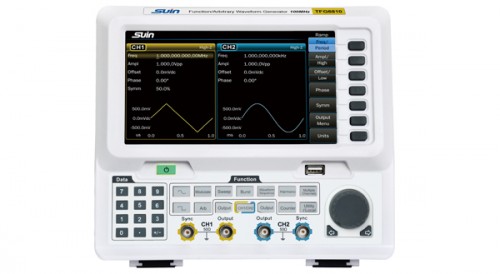

     TFG6800 Series   35MHz/65MHz/100MHz Arbitrary Waveform Generator,2-CH



    Overview

    With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts, the TFG6800 series products can reproduce any waveform with high quality.  The new portable design and optional power amplifier make this one of the most flexible and popular generators on the market.



    Product Model

    TFG6803/TFG6806/TFG6810



    Suin Dual Channel Waveform Generator Specifiations



    TFG6803

    TFG6806

    TFG6810

    Frequency

    Sine/Square

    1μHz-35MHz

    1μHz-65MHz

    1μHz-100MHz

    Pulse

    1μHz-25MHz

    Ramp

    1μHz-3MHz

    PRBS

    1kbps~60Mbps

    Noise (-3dB)

    100MHz Width

    Other

    1μHz~20MHz

    Resolution

    1μHz or 12 digits

    Accuracy

    ±(20ppm + 14pHz)

    Waveform

    Type

    165   kinds include: Sine,
    Square, Ramp, Pulse,   Noise, DC,
    PRBS, user-defined,Arbitrary waveform,
    user-defined harmonic, etc

    Sample rate

    250MSa/s

    Vertical resolution

    16 bits

    Arbitrary

    Sample
    Rate

    1μSa/s~125MSa/s

    Length

    2-16Mpts

    Resolution

    16 bits

    Square

    Rise/Fall

    Time

    ≤4.2ns

    Duty Cycle

    0.0001%~99.9999%

    Pulse

    Rise/Fall

    Time

    ≥8ns

    Width

    13ns ~ (period - 13ns)

    Amplitude(High Z)

    Range

    2mVpp~20Vpp,   frequency≤10MHz
    2mVpp~10Vpp, frequency>10MHz

    Resolution

    1mVpp or 4digits

    Accuracy

    ±(of   settings value×1%＋1mV), Sine 1kHz,
    ≥10mVpp, offset 0V

    Offset(High Z)

    Range

    ±10Vpk(ac＋dc)

    Resolution

    1mVdc

    Accuracy

    ±(|setting   value|×1%＋2mV＋amplitude value ×0.5%)

    Sweep

    Range

    1μHz ~ upper frequency   limit

    Type

    Linear, logarithmic

    Time

    1ms to 500s

    Modulation

    FM,AM,PM,

    PWM, Sum

    Carrier
    Waveform

    Sine, Square, Ramp (only   pulse for PWM), etc.

    Modulating

    Waveform

    Sine, Square, Ramp, etc.

    Modulating
    Frequency

    1mHz to 100kHz

    FSK,4FSK,

    NFSK,PSK,

    4PSK,NPSK,

    ASK,OSK

    Carrier

    Waveform

    Sine, Square, Ramp, ect
