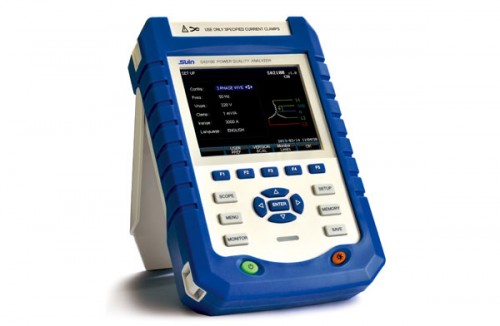

     SA2100 Power Quality Analyzer Portable        Power Quality Analyzer Supplier



    Overview

    SA2100 Power Quality Analyzer is a handheld multi-functional device which is designed to measure and analyze single or three-phase power system. This portable class S device can provide safe, convenient and accurate measurements for troubleshooting power networks.



    Application

    Electrical power, medical, transportation, telecommunication, other industrial areas



    Design Features

    Basic voltage measurement accuracy of±0.5%

    1-50th harmonic display

    Support dynamic measurement such as Inrush, Flicker and Transients.

    10 kinds of language are available to select

    Powerful logger function



    Specifiations


    Measurement Range

    Resolution

    Accuracy



    Voltage/Current/Frequency

    Vrms(AC+DC)

    1~ 1000Vrms

    0.1Vrms

    ±0.5% of nominal

    voltage

    Vpk

    1 ~ 1400Vpk

    0.1Vpk

    ±0.5% of nominal

    voltage

    V(Crest Factor)

    1.0 ~>2.8

    0.01

    ±5%

    Arms (AC)

    10mV/A

    0 ~ 100A

    0.1A

    ±0.5%±0.2A

    1mV/A

    1~1000A

    0.1A

    ±0.5%±0.2A

    50mV(65mV)/1000A

    15~5000A

    1A

    ±1%±2A

    A(Crest Factor)

    1~10

    0.01

    ±5%

    Frequency

    42.5 ~ 57.5Hz

    (50Hz nominal)

    0.01Hz

    ±0.01Hz

    51 ~ 69Hz

    (60Hz nominal)

    0.01Hz

    ±0.01Hz

    385~414Hz

    (400Hz nominal)

    0.01Hz

    ±0.1Hz

    Dips & Swells

    Vrms1/2

    0   ~ 200% of

    nominal voltage

    0.1Vrms

    ±1%

    Arms1/2

    1 ~ 3000A

    1A

    ±1%±2A

    Duration

    hour-minute-

    second-

    microsecond

    0.5 cycle

    1 cycle

    Harmonic(IEC61000-4-7)

    Harmonic Number

    1 ~ 50

    Harmonic Voltage %f

    0.0 ~ 100.0%

    0.10%

    ±0.1%±nx0.1%

    Harmonic Current %f

    0.0 ~ 100.0%

    0.10%

    ±0.1%±nx0.1%

    THD

    0.0 ~ 100.0%

    0.10%

    ±2.5%

    Phase

    -360° ~ 0°

    1°

    ±nx1.5°

    Power and Energy

    Active Power/Apparent Power/Reactive Power

    1.0 ~ 20.00MW

    0.1kW

    ±1.5±10 digits

    KWh
