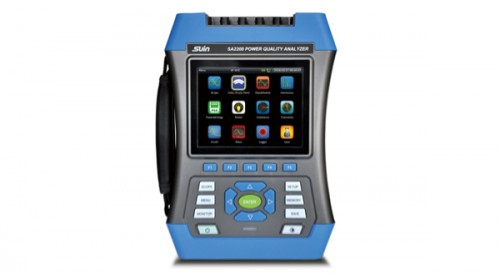

SA2200 Power Quality Analyzer      Portable Power Quality Meter    Power Quality Analyzer Price

Overview

The critical importance of electrical power in today's society necessitates daily maintenance and management to ensure that problem's don't occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly.

The Suin SA2100 and SA2200 help troubleshoot power quality problems in three- and single-phase power distribution systems. Especially the SA2200 can conduct tests according to the international IEC 61000-4-30 Class A standard.

Applications

Power supply maintenance, management, troubleshooting and analysis

Design Features of SUIN Power Quality Analyzer

Class A compliance under international standards

Basic voltage measurement accuracy of±0.1%

Special waveform record function

200kS/s sample rate

Support multi language

32GB micro SD card

GPS time synchronization

Specifiations

Voltage/Current/Frequency		Measurement Range	Resolution	Accuracy
Vrms(AC+DC)		1 ~ 120Vrms	0.001Vrms	±0.1% of nominal voltage
		120Vrms~400Vrms	0.01Vrms
		400Vrms~1000Vrms	0.1Vrms
Vpk		1 ~ 1400Vpk	0.01Vpk	±0.5% of nominal voltage
V(Crest Factor)		1.0 ~ >2.8	0.01	±5%
Arms（AC）	10mV/A	0~150A	0.01A	±0.1%±0.1A
	1mV/A	1~2000A	0.01A	±0.1%±0.1A
	65mV/1000A	10~6000A	0.01A	±0.1%±0.2A
A(Crest Factor)		1 ~ 10	0.01	±5%
Frequency		42.5~57.5 (50Hz nominal)	0.01Hz	±0.01Hz
		51~69 (60Hz nominal)	0.01Hz	±0.01Hz
		320~480 (400Hz nominal)	0.01Hz	±0.01Hz
Dips & Swells
Vrms1/2		0 ~ 200% of nominal voltage	0.01Vrms	±0.2%
Arms1/2		depends on current clamps	0.01A	±1%
Harmonic (IEC61000-4-7)
Harmonic Number		1 ~ 100(50/60Hz) (IEC61000-4-7)   1~12(400Hz)
Harmonic Voltage %f		0.0 ~ 100.0%	0.01%	±0.1%±nx0.1%
Harmonic Current %f		0.0 ~ 100.0%	0.01%	±0.1%±nx0.1%
THD		0.0 ~ 100.0%	0.01%	±2.5%
Phase		-180° ~180°	0.1°	± nx0.1°
Power and Energy
P, S, Q1		Max. 6000MW	0.1kW	±1%±10 digits
PF & cosФ		Same type of products More... ZW Self priming $ 0.00 104 low-voltag $ 1.00 104K 275V 310V $ 1.00 2021 New and Ni $ 1.00 2Phase Stepper $ 0.00 Comment Comment on the content: Enter verification code: Seller information Shijiazhuang Suin Instruments Co., Ltd Name Lisa Liu Telephone: 86-311-83897147 Fax: 86-311-83897040 Mobile: Location: Shijiazhuang Hebei Address: A-2, Optical Valley Park,No.99 Yuyuan Road, Luquan District Latest products SK3323/3325/3503 Sk3323 Power Suppl SS7406 Frequency Counter Stopwatch Ca SA2200 Power Quality Analyzer Portab SA2100 Power Quality Analyzer Portable TFG6800 Series 35MHz/65MHz/100MHz Arbit SU5000 Series Digital Pattern Generators TFG1900B Series low cost function gen TFG2900A Series frequency generators f Advertise | About Us | FAQs | Premium Membership | Terms of Use | Contact Us Copyright © TopBuySell.com
