    Product details

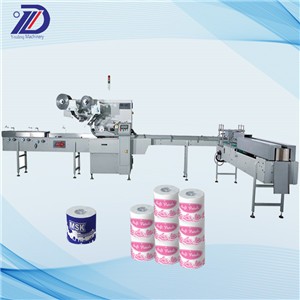

     Single roll toilet paper packaging machine       Toilet Paper Packaging Machine    Single Rolls Packaging Machine Manufacturer



    Toilet Paper Packaging Machine Features

    1. Automatic single toilet roil packing machine features adopt to kitchen towel and toilet paper with core and without core package .

    2. Toile rolls feeding.put the packing film,vertical sealing,coreless rolis air exhaust,recersing all action control by servo motor,have completely all function,high efficiency,simple operation,sprcifications to adapt to a wide range.the quick changeover specifications,the advantages of convenient maintenance and low use cost.

    3. Stable speed with core the maximum speed is 200rolls/min.

    4. Stable speed without core the maximum speed is 150rolls/min.

    5. It is adjustable the tissue length from 80mm-195mmomly set by electronic.



    Toilet Paper Packaging Machine Technical parameters:

    Scope of application:

    Single roll for both core and non-core style

    In-feed pattern:

    ASF full automatic

    Design speed:

    35-240 rolls/min

    Max stable operation speed(core roll):

    180rolls/min

    Max stable operation speed(non-core roll):

    120rolls/min

    Film installation structure:

    double film support

    Roll diameter:

    90mm-120mm

    Core roll length:

    90-150mm

    Non-coreroll length:

    90-170nn

    Mould:

    2 sets matched

    Machine dimension:

    6645mm*2839mm*1680mm(L*W*H)

    Machine weight:

    about 1700kg

    Film materials:

    double heat-seal film bopp,spp

    Film thickness:

    0.018-0.03mm

    Max film reel diameter:

    380mm

    Core reel diameter:

    70-76mm

    Max film reel width:

    430mm

    Compressed air:

    Pressure>5mpa; Rate of flow>150 L/min

    Supply Power:

    220V/50HZ

    Total power:

    2.885kw

    Total heat power:

    5.1kw

    Voltage variation:

    +/-10%

    I/O input(VDC):

    24VDC

    I/O output(VDC):

    24VDC

    Machine color and prossing:

    Gray RAL7032; Electrostatic spraying & baking varniish

    Machine run control pattern:

    Three axle servo and axle location control

    Main movement pattern:

    synchronous belt, chain and gear

    Roll sealing style:

    Full close or semi-close
