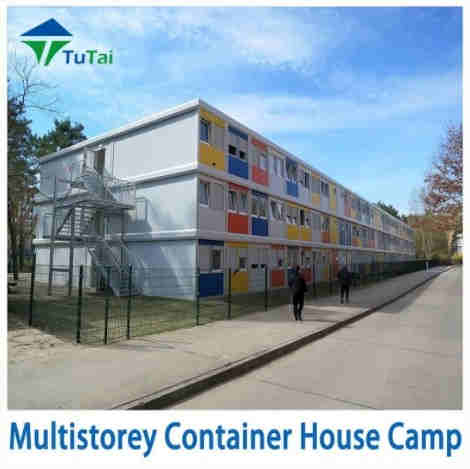

Construction Site Office Camping Container House
After the demolition of the packed box completed project, there will be no construction waste left and the resident environment will not be damaged. At the same time, as a project department, it improves the residential use comfort, to meet the living and entertainment needs of overseas personnel.
Our factory is located in Handan City, Hebei Province, covering an area of 67,000 square meters, equipped with roller cold rolling machines, automatic graphene powder spraying coating production line, Germany imported automatic sandwich panel production line, door and windows processing machines, etc. Our annual production can reach 45,000 sets container.
|
Standard house |
Size(mm) |
5850*2430*2896mm (L*W*H) |
|
Roof shape |
Flat roof with internal drainage |
|
|
Floor |
≤3 Storey |
|
|
Structure |
Corner post, roof and floor beam, column |
Galvanized cold rolled steel, thickness 2.0-2.5mm, zinc content 80-150g/m2 |
|
Paint |
Graphene powder electrostatic spraying, thickness 80-100μm |
|
|
Roof |
Roof sheet |
Galvanized color coated steel sheet, white gray, 3%-5% slop |
|
Insulation material |
50mm thickness fiberglass roll with single aluminum foil, density 15kg/m2, A grade fireproof property |
|
|
Ceiling |
0.5mm thickness color coated steel sheet, model V831/V193 for option |
|
|
Floor |
Decoration |
2.0mm thickness PVC floor |
|
Base plate |
16mm thickness MGO board |
|
|
Moisture-proof film |
Specialized PE moisture-proof film |
|
|
Optional |
Insulation material ,Sealing bottom plate |
|
|
Wall |
Thickness |
50/75mm fiberglass sandwich panel, two side galvanized steel sheet thickness 0.4-0.5mm |
|
Appearance |
Outer orange peel grain, inside flat |
|
|
Insulation |
50/75mm fiberglass, density≥50kg/m, combustion performance is a grade |
|
|
Door |
Can be customized |
Standard is 840*2035mm, specially made fireproof steel door |
|
Windows |
Can be customized |
1120*1100mm, PVC double glazing with screen window and security bar |
|
Electrical and pipeline |
Prefabricated, as your requested standard |
|
|
Optional |
Bathroom fittings, kitchen fittings, furniture |
|
More information please click here.
