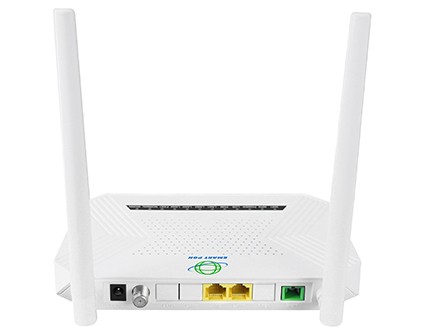

1GE+1FE+WIFI+CATV FTTH XPON ONU
Product details
1. Overview
* SUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* SUR3107XR is based on mature and stable, cost-effective XPON technology.
* SUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
* SUR3107XR is based on mature and stable, cost-effective XPON technology.
* SUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Chip Spec
|
RTL9601D ,CPU 300MHz,DDR2 32MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
|
|
LED
|
4 LED, For Status of PWR、LOS、PON、LINK/ACT
|
|
Push-Button
|
2,For Function of Power on/off,Reset
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/0.5A
|
|
Power Consumption
|
<3W
|
|
Dimension
|
120mmx78mmx30mm(L×W×H)
|
|
Net Weight
|
0.13Kg
|
