I.Main Use :

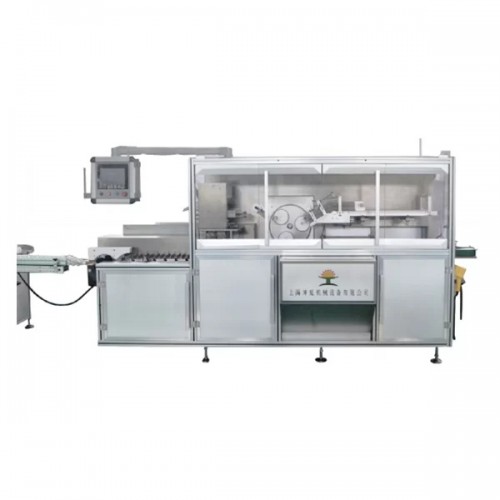

KY-180ZH automatic medium-speed packing machine is a model that our company has innovated and designed on the basis of introducing foreign first-class technology.
This machine is a fully automatic continuous medium-speed packing machine. It integrates high-performance products integrating machine, light, points and gas, and can form a packing production line with it.
II.Applications
KY-180ZH cartoning machines are used in all fast moving consumer goods sectors but especially pharmaceuticals,food, confectionery, tobacco, tea and coffee, , toiletries, cosmetics, household products and etc.
III.Performance characteristics
1. Assemble all kinds of European models of specialty, simplify the equipment of various transmission system.
2. Equipment small size, covers less area, faster, full feature, cost effective.
3. With image testing system, optional without word specifications and carton bar code detection system.
4. The transmission system uses the material with is suitable for high speed operation.
5. The suction head adopts gear transmission more stable and low noise.
6. The board product uses the servo control system to divide the material.
7. The bottles feeding system is our company’s patent, the patent technology can make the bottle more stable, not exploding bottles.
IV.Technical Parameter
|
No. |
Name |
Value |
|
1 |
Packing machine total power |
5KW |
|
2 |
Working voltage |
380/50V |
|
3 |
Box stabilization speed |
120-180box/min. |
|
4 |
Carton paper |
250-350g（white card）or 300-350g（gray card）/m2 |
|
5 |
Carton size |
L(65-180)mm * W(30-95)mm * H(18-60)mm |
|
6 |
Manual specification |
L(70-200)mm * W(70-160)mm |
|
7 |
Manual paper |
50-65g/ m2 |
|
8 |
Air consumption |
5-8L/min |
|
9 |
Compressed air |
0.6-0.8MPA |
|
10 |
Total weight |
1300KG |
|
11 |
Shape size (connection part is not included) |
L3300 * W1200 * H1780 mm |
|
12 |
Noise |
≦75dB |
V.Configuration
|
No. |
Name |
Model |
Brand. |
QTY |
|||||||||
|
1 |
Touch screen |
GS2107-WTBD |
Mitsubishi |
1 |
|||||||||
|
2 |
PLC |
FX3SA-30MT-CM |
Mitsubishi |
1 |
|||||||||
|
3 |
Frequency converter |
FR-E740-0.75K-CHT |
Mitsubishi |
1 |
|||||||||
|
4 |
Miniature circuit breaker |
OSMC32N3C16 |
Schneider |
1 |
|||||||||
|
5 |
Miniature circuit breaker |
OSMC32N1C6 |
Schneider |
3 |
|||||||||
|
6 |
With leakage circuit breaker |
EA9RN4C3230C |
Schneider |
1 |
|||||||||
|
7 |
Relay |
MY2N-J/DC 24v |
Omron |
6 |
|||||||||
|
8 |
Relay base |
PYF08A-E |
Omron |
6 |
|||||||||
|
9 |
Encoder |
OVW2-036-2MHC |
NEMICON |
| |||||||||
