I.Main Use

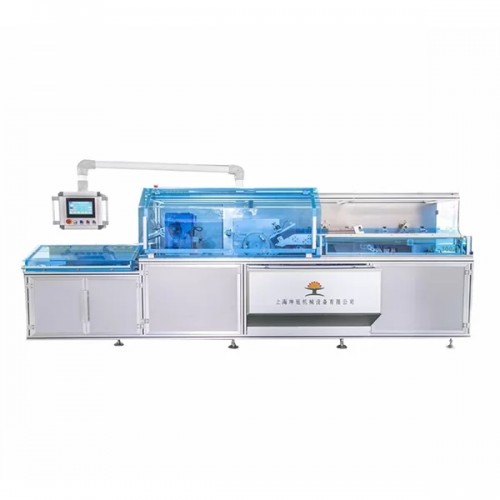

KY-300ZH cartoning machine is designed and assembled for high speed requirements reach to 200~280cartons/min, We chose powerful and reliable motors, valves, sensors, controllers to make the most durable cartoner .It is high-producing cartoner with exquisite appearance .
KY-300ZH cartoning machine suitable for a variety of specifications of the drug board, Preparation of Chinese medicine,small and regular objects, some small and medium sized food, which are loaded into the customized paper tray,got sealed and sent out . It has a wide application.Products can be regularly changed according to the user’s different requirements . easy assembly and debugging .it is not only suitable for large quantities of single varieties of production, but also can meet small quantities of many varieties of drug production.
II.Applications
KY-300ZH cartoning machines are used in all fast moving consumer goods sectors but especially pharmaceuticals,food, confectionery, tobacco, tea and coffee, , toiletries, cosmetics, household products and etc.
III.Performance characteristics
1. The design concept adopts a backward pus international advanced model
2. The use of internationally advanced production processes, noise is even lower.
3. The push material adopts a two-stage push method.
4. The base of whole machine is bending and forming at one time. The base is not deformed, and the horizontal error rate does not exceed five wires.
5. Paper box shelf has automatic lifting function, easy to operate.
6. The replacement specifications are quick and convenient, with product specifications memory function, all adjustment workers have rulers or digital display, no special tools, that is, detachable installation.

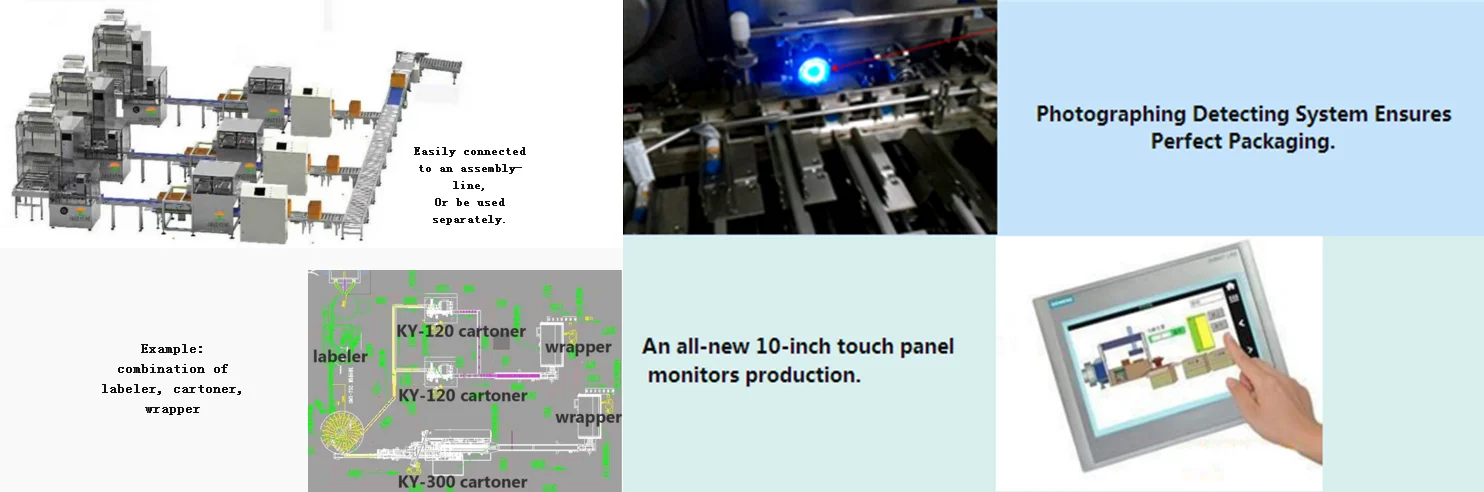

7. With an imaging detection system.
8. Optional specification and box bar code, no word instruction testing system.
IV.Technical Parameter
|
No. |
Name |
Value |
|
1 |
Packing machine total power |
7.5KW |
|
2 |
Working voltage |
380/50V |
|
3 |
Box stabilization speed |
200-280box/min. |
|
4 |
Carton paper |
250-350g（white card）or 300-350g（gray card）/m2 |
|
5 |
Carton size |
L(50-160)mm * W(30-70)mm * H(15-50)mm |
|
6 |
Manual specification |
L(70-230)mm * W(70-230)mm |
|
7 |
Manual paper |
50-65g/ m2 |
|
8 |
Air consumption |
5-8L/min |
|
9 |
Compressed air |
0.6-0.8MPA |
|
10 |
Total weight |
2500KG |
|
11 |
Shape size (connection part is not included) |
L4300 * W1700 * H2000 mm |
|
12 |
Noise |
≦75dB |
VI.Terms and Condition:
1. Lead time: 30 working days after advance payment received .
2. Port of Loading: Shanghai , China.
3. Payment: 50% advance payment by T/T, and 50% balance payment before shipping.
4. Packing: standard export wooden case.
5. Warranty period: one year since the date of ETA
6.Service :We provide the installation&operation training by videos ,written instructions and remote assistance during the period of Covid-19;Door to door service will be provided after the whole situation get normal .
VII.Why Chose us :
1.-Increase production capacity
Cool Young automatic packaging line will increase production capacity to 400~800% for you .
2.-Save labor cost.
Cool Young automatic packaging line will save labor cost by 70~90%
3.-Reduce wastage
Cool Young automatic packaging line will save package material by 10~30%
4.-Establish Standardization production system.
As known to all ,hand made products are not stable on quality,speed,wastage &shapes ,cool young automatic packaging line can make all these factors are consistent .
