Description:

1.         Motor:    50HP/75HP

2.         Applicable material:       brass, aluminium, steel and alloy rod

3.         Applicable size:       Ø15~50mm/40mm

4.         Working range:       8~25%

Applications and features:

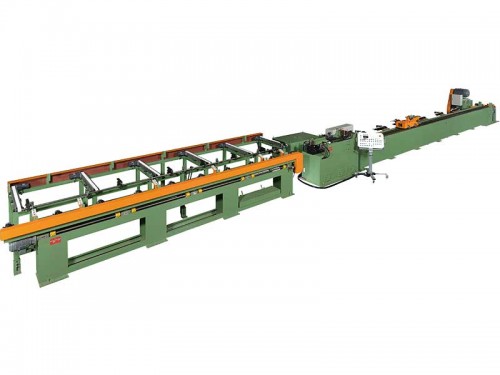

1. Seesaw-type drawbench with the chain-driven carriage to pull out the rolled or extruded tubes for better precision.

2. Equipped with push pointer for pointing process, substituting lathing or shrinking the end of bar process before the cold drawing.

3. Cold drawn materials improve the hardness, yield and tensile strength of the material.

4. Option to combine length cutting or straightening processes after cold drawing for better production efficiency.

5. Pulling force, speed, and drawing length could be custom-made according to the practical process deriving from the material composition.

6. Relevant working processes:      Extrusion, sand-blasting, pickling, coating, heat treatment, cutting, straightening
