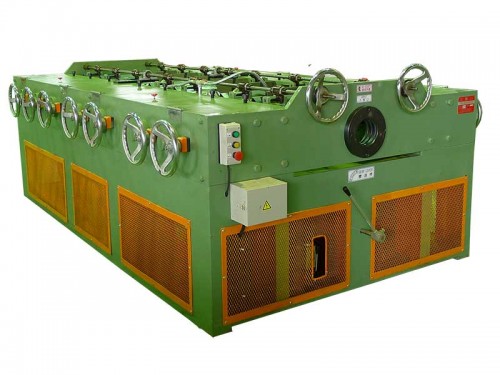

Description:

1.         Motor:    15HP

2.         Roller configuration:       Ø176 x 200L

3.         Applicable material:       brass, aluminium, steel, special alloy tube, pipe and bar

4.         Applicable size:       Ø30~100mm

5.         Target range:   Straightness ≦0.30mm/M

Applications and features:

1. Horizontal layout design with zigzag arrangement to press the materials for straightening through multi-rollers.

2. All rollers are equipped with distance scale gauges for recording at ease.

3. Machine equipped with inverter for the speed adjustment that is required for each different composition of the material.

4. Automatic operation is available by connecting to the loading, feeding and collecting machines.

5. Digital control model provides the operator records and references that help to adjust the rollers required for straightening through interface.

6. Relevant working processes:      Cold drawing, bending, lathing, cutting, packaging
