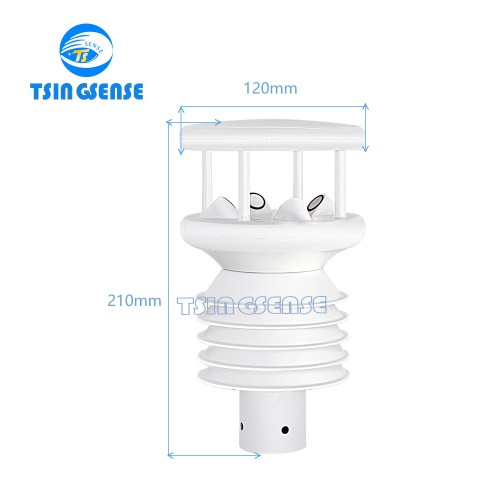

TS MWTS05 integrated five-element meteorological sensor is a professional-grade miniature sensor independently developed by our company to measure various meteorological elements. It can simultaneously measure temperature, humidity, pressure, wind direction, speed parameters. It has the advantages of high precision, fast response time, strong anti-interference ability and serial output. Users can directly measure through PC or external instruments.
- Open system protocol
- Ultra-low power design (less than 0.2W)
- Maintenance-free system design, high accuracy
- Standard RS485 output (RS232 optional)
- Industrial-grade protective shell ensures long-term field use
- Optional built-in electronic compass, GPRS, GPS, etc.
| Factor | Measuring range | Resolution | Accuracy | Measure principle |
|
Air temperature |
-40℃~+60℃ |
0.1℃ | ±0.3℃ | Platinum resistance |
|
Air humidity |
0~100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
|
Air pressure |
10~1300hpa |
0.1hpa | ±0.3hpa | Silicon piezoresistive |
|
Wind direction |
0~360° | 1° | ±3° | Ultrasonic |
|
Wind speed |
0~55m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
|
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03, Electronic compass-b01, GPS-b02, Heating, Battery-d01. |
||||
Sensor 1 set
3.5m cable 1 line
Instruction 1 copy
Certificate/warranty 1 copy
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)
