Product Description

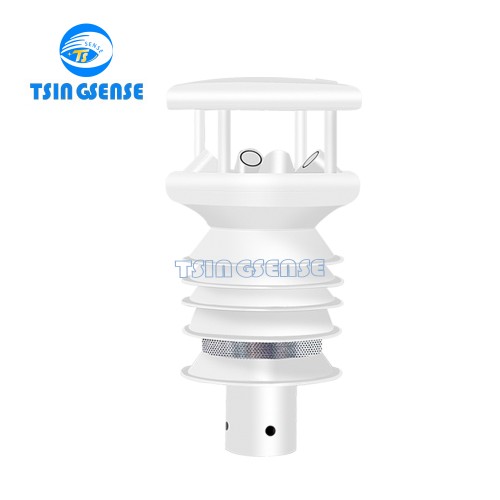

TS MWDS08 integrated dust monitoring sensor is a professional small instrument used in dust monitoring of smart city environment. It can monitor air temperature, air humidity, wind speed, wind direction, air pressure and other meteorological elements, and also monitor PM2.5/10, noise and other environmental elements. The system adopts modules for flexible configuration, small size and low cost, suitable for industrial intensive distribution monitoring
- Flexiblely configure monitoring module
- Standard Modbus protocol
- Small size, light weight, high precision
- Integrated design, maintenance-free, easy to install
- Can expand GPS, electronic compass, GPRS and other functions
| Factor | Measuring range | Resolution | Accuracy | Measure principle |
| Air temperature | -40℃~+60℃ | 0.1℃ | ±0.3℃ | Platinum resistance |
| Air humidity | 0~100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
| Air pressure | 10~1300hpa | 0.1hpa | ±0.3hpa | Silicon piezoresistive |
| Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
| Wind speed | 0~55m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
| Noise | 30-130dB | A-weighted value (Simulate human ear) | ±1.5dB | Capacitive microphone |
| PM2.5 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or 15% | Laser scattering |
| PM10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or 15% | Laser scattering |
| Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03, Electronic compass-b01, GPS-b02, Heating, Battery-d01. | ||||
Sensor 1 set
3.5m cable 1 line
Instruction 1 copy
Certificate/warranty 1 copy
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 (RS232 can be selected)
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart city,industrial park and mines, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
