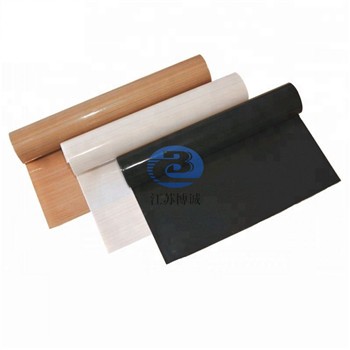

PTFE coated fiberglass fabric takes high quality imported glass fiber as weaving material. The basic material is weaved specially into senior glass fiber cloth substrate. After unique technology such as full immersion, impregnation, coating the cloth with PTFE, different thickness and width of Teflon cloth is finally produced.

PTFE Fabric Description

Common thickness:

0.08mm 0.12mm 0.13mm 0.15mm 0.18mm 0.25mm 0.3mm

We couls supply at most 1.5mm fabric.

Common width:

1 meter or 1.25 meter

For other width, customization is available as well.

Features of Bocheng PTFE Fabric:

1. High-temperature resistance(-100℉ to +550℉).

2. Non-sticky and easy to clean.

3. Food grade and nontoxic.

4. Heat resistance and fireproof.

5. Resistant to chemical corrosion, strong acid and alkali.

6. Good dimensional stability, high strength, and has good mechanical properties.

7. Low friction coefficient (0.05-0.1), the best choice for oil-free self-lubrication.

8. Light transmittance up to 6%~13 %.

9. High insulation property (the value of dielectric constant is only 2.6, and the value of tangent is less than 0.0025).

10. Anti-static and Ultraviolet-proof.

Application of PTFE Fabric:

1. Packaging machines.

2. Bag making machines.

3. Heat print machines.

4. Somewhere else where the heat resistance and non-stick are needed.
