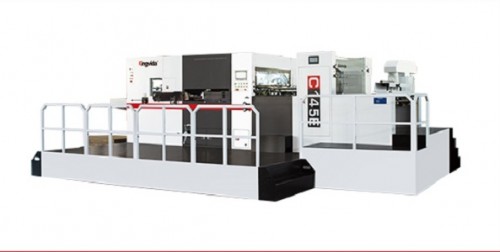

C145E Automatic die-cutting and creasing machine with stripping station

Auto Die Cutting and Creasing Machine Feature introduction

Lead edge paper feeding unit

1.Uniquely designed lead edge feeding system adopt non-stop bottom suction leading edge feeding method, it overcomes the temperature, humidity and differences of paper weight cause by paper warp, make sure warp paper or thick paper feeding more smoothly.

2.The unique servo paper feeding system of this machine improves the precision of paper in place. Unique motion control program completely eliminates the phenomenon of paper scratching.

3.Install side pat baffle device, this device ensures that the paper stack position is basically correct when feeding paper.

4. The operator only need to input the length of paper, the paper wheel can completely send out the paper.

Positioning and transport unit

1.High power servo drive for paper transfer and with a unique curve trajectory, to ensure that the paper in place and accurate.

2.Phase adjustment and PLC control precision.

3.There are one sets positioning push gauge on both sides, it ensure the positioning accuracy of side paper.

4.Front and side gauge designed with wide, it makes high precision on the framed paper.

5.Front gauge with vernier device of gripper, simply turn the hand-wheel to align the gauge.

6.Unique design of upper and lower front gauge matching gripper mechanism ensure that the warped paper can be transferred smoothly and ensure the die cutting precision.

7.The gripper bar is made of aluminum magnesium alloy, with high strength and no deformation. All screws and nuts of the gripper bar are made of standard anti-loosening screws and nuts.

8.Imported transmission chain, high strength oil-containing nylon chain guide board and oil drop type automatic lubrication device, low noise at high speed.
