HM-KL915 CNC Honing Machine with Finishes of 0.1-0.2 um
Visits: 54
    • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: GEEPRO
    Specifications: ---
    Type New
    Date: 06-07-2022
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

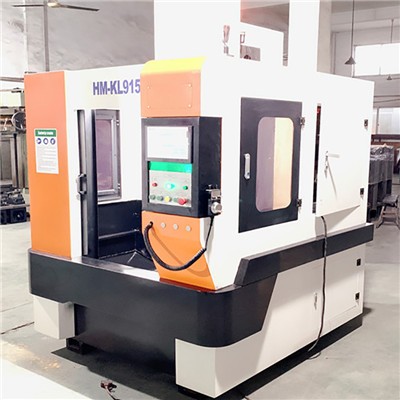

    HM-KL915 CNC Honing Machine

    Max Honing Diameter: Ø12--Ø200mm

    Max Honing Depth: 600mm



    Main Specification:

    1

    Machining Hole Diameter

    Ø12-Ø200mm

    2

    Allowable load of table

    200kg

    3

    Maximum stroke Depth

    600mm

    4

    Spindle motor power

    1.5KW

    5

    Spindle reducer ratio

    3：1

    6

    Spindle Speed range

    100-1000rpm(CVT)

    7

    Return Oil Pump flow

    100L/min

    8

    Stroke Motor

    2.2KW

    9

    Stroke Control Type

    “Servo Motor+Ball Screw”

    10

    Stroke Speed

    0-40m/min(CVT)

    11

    Honing tool Qty

    1 Axis

    12

    Single Working Station

    1（Single Honing tool）

    13

    Feeding Torque

    ≥20NM

    14

    Honing Accuracy

    ≤0.1mm

    15

    Feeding Type

    Constant feed

    16

    Machine Weight

    About 2.5 Tons

    17

    Machine Size L×W×H

    1500×1500×2700mm

    18

    Noise standard

    Less 80 dB Normally



    Wuxi Geepro Machinery Import & Export Co., Ltd. has been focusing on Gear Machinery since 2007 and is one of the most professional CNC Gear Hobbing Machine Manufacturers In China, export CNC Gear Hobbing Machine, Honing Tools. If you are interested in our products, please click here to visit our website and be happy to become a partner.
