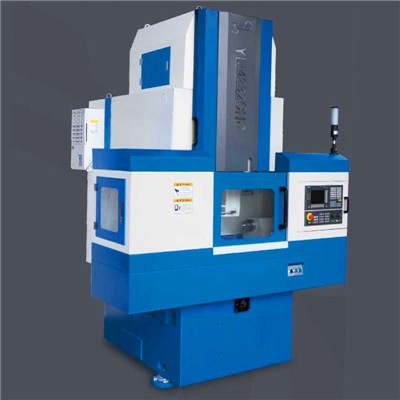

GEEPRO Gear Shaving Machine DESCRIPTION
The six-axis four-linkage of the machine tool, in which the tool rotation axis and the workpiece rotation axis adopt the variable lead precision pupa wheel pair transmission, the main movement and the knife movement are directly controlled by the servo motor, which has high processing efficiency and good accuracy and stability. Mainly used in construction machinery, reducer and wind power industries.
The machine tool is equipped with processing. The function of auto-switching the cutter when the external gear is used, realizes the automatic conversion of the cutter for the internal and external gears through program input.
|
Description |
unit |
specfflcalion |
|
Max .workpiece dia external gear |
mm |
320 |
|
Max module |
mm |
6 |
|
Maximum distance between the vertices of the workpiece |
mm |
580 |
|
Distance between centric max |
mm |
280 |
|
Lines of workpiece and cutter min |
mm |
110 |
|
Swing angle of cutter head |
deg |
±30 |
|
Rotating speed of cutter |
mm/min |
55-270 ( stepless) |
Wuxi Geepro Machinery Import & Export Co., Ltd. has been focusing on Gear Machinery since 2007 and is one of the most professional CNC Gear Hobbing Machine Manufacturers In China, export CNC Gear Hobbing Machine, Honing Tools. If you are interested in our products, please click here to visit our website and be happy to become a partner.
