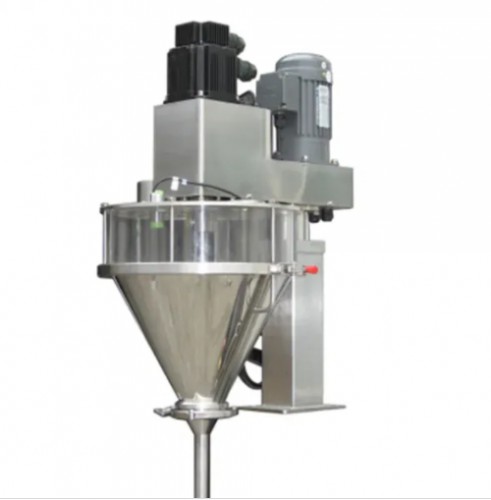

Equipment Description
This type of auger filler can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Main Features
The split hopper could be washed easily without tools.
Servo motor drive screw.
Stainless steel structure, Contact parts SS304
Include hand-wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Technical Specification
|
Model |
SPAF-11L |
SPAF-25L |
SPAF-50L |
SPAF-75L |
|
Hopper |
Split hopper 11L |
Split hopper 25L |
Split hopper 50L |
Split hopper 75L |
|
Packing Weight |
0.5-20g |
1-200g |
10-2000g |
10-5000g |
|
Packing Weight |
0.5-5g,<±3-5%; 5-20g, <±2% |
1-10g,<±3-5%; 10-100g, <±2%; 100-200g, <±1%; |
<100g,<±2%; 100 ~ 500g, <±1%;＞500g, <±0.5% |
<100g,<±2%; 100 ~ 500g, <±1%; ＞500g, <±0.5% |
|
Filling speed |
40-80 times per min |
40-80 times per min |
20-60 times per min |
10-30 times per min |
|
Power supply |
3P, AC208-415V, 50/60Hz |
3P AC208-415V 50/60Hz |
3P, AC208-415V, 50/60Hz |
3P AC208-415V 50/60Hz |
|
Total Power |
0.95 Kw |
1.2 Kw |
1.9 Kw |
3.75 Kw |
|
Total Weight |
100kg |
140kg |
220kg |
350kg |
|
Overall Dimensions |
561×387×851 mm |
648×506×1025mm |
878×613×1227 mm |
1141×834×1304mm |
More information please click here.
