    Product details

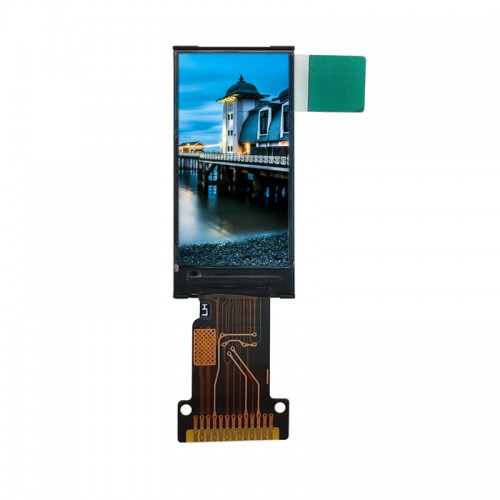

     0.96 INCH TFT DISPLAY

    Our DG-80160-096 TFT LCD is a 0.96 inch TFT display with 80*160 resolution. It is built into IPS/Transmission mode, SP14 interface and driven by ST7735S driver IC. It can reach wide viewing angle of left: 80, right:80, up:80, down:80 degree. 1000:1 contrast ratio makes it display clear white text in both bright and dark room. This TFT display is designed to be operated with -20 ~ +70 °C temperature and stored within -30 ~ +80 °C. It is widely used in wearable device, personal health appliances, and smartwatches. All of our products are open to be customized according to client’s demand. Welcome to send us any inquiry regarding to our products.

    TFT Display Module Specification:

    Part #

    DG-80160-096

    TFT Type

    0.96" TFT

    Dot arrangement

    80(RGB)×160 dots

    Module Size

    14.04(W)×27.95(H)×1.35(T) mm

    Active area

    10.8(W)×21.7(H) mm

    Display mode

    IPS / Transmission

    Driver IC

    ST7735S

    Eyes Viewing Direction

    80/80/80/80

    Transmission Contrast

    1000:1

    Color filter array

    RGB vertical stripe

    Interface

    SPI4

    Backlight Color

    White

    Operating temperature

    -20 ~ +70 °C

    Storage temperature

    -30 ~ +80 °C
