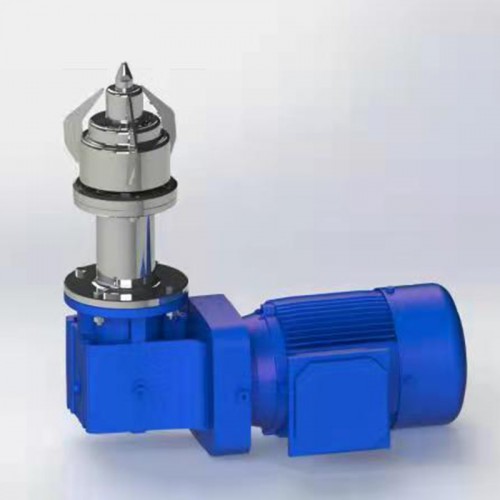

KCX Sanitary Bottom-Mounted Magnetic Agitator

Bottom Entry Agitators provide manufacturers in the pharmaceutical, biopharmaceutical and food processing industries with viable alternatives to top entry solutions. These mixers provide efficient mixing and blending of products, and can be Custom Designed to suit the specific speed, shear and agitation requirements for various applications.Blending (petro)chemical, food or pharmaceutical products for instance in reactors are examples of heavy duty applications where bottom entry agitators and mixers are selected.

Stirrers play a vital role in the biopharmaceutical industry and the key technology is the reliability of the seal. The majority of stirrers currently use single- or double-faced mechanical seals, a traditional sealing technology which is still essentially a dynamic seal. It requires lubrication, cooling, contact, relative movement, heating, wear and tear, material shedding, maintenance and risk. Therefore, for the demanding requirements of the bio-pharmaceutical industry, mechanical seals have their limitations.

KEAN has made significant progress and achievements in the research of magnetically levitated stirring systems for bioreactors with regard to the special requirements of bioreactors, making magnetic drives and supports possible. The magnetic drive converts the dynamic seal into a static seal, so that the sealing problem is completely solved.

Applications Are Characterized by Bottom Entry Agitator :

Mixing applications where extremely high forces are required

Very large tank volumes where a bottom bearing is not desirable

Highly speed exceeding even 450 rpm

High pressure tanks exceeding even 100 bar g

Temperatures exceeding even 250 °C

Bottom Entry Agitator Advantages.

--Zero leakage;

--No dynamic sealing ;

--High safety and durability;

--Very low maintenance costs;

--Can be CIP cleaning and SIP sterilization for hygienic sterility,

--FDA and GMP compliant;sorderly dispersion of magnetic force line of technical measures.
