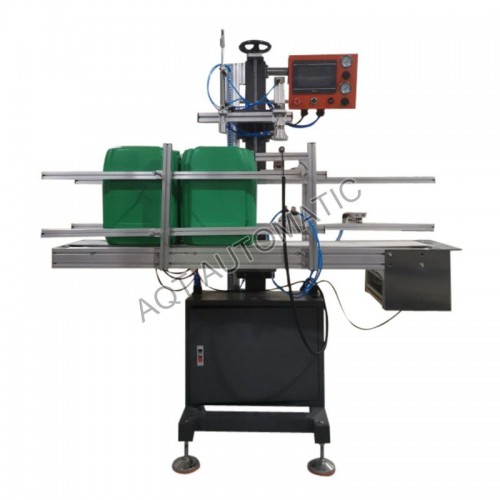

AQT-801S 25L single head leak tester

AQT bottle leak testing machine adopted difference pressure testing evolutionary system of Italy. Higher precision and good stable, we can detect leak hole range 0.05-0.1mm.

Leak testing machine Main Feature

1. Original differential pressure microleak detection system，detection accuracy reach 0.01-0.08mm;

2. Pneumatic non-destructive automatic detection, no flood, high quality and safety;

3. PLC, touch screen, extended module control system, highly efficient, stable, flexible and durable, can store 10 sets of test data, convenient and time-saving;

4. It is convenient and quick to replace the test head, which is suitable for various sizes of bottle mouth and bottle type;

5. The transportation belt adopts the direction wheel to adjust height, saving time and effort;

6. The test speed is in line with international standards, Easily match the output of various bottle blowing machines

7. It can be effectively connected with blow moulding machine, labeling machine, filling line and bottle packing to be an automatic intelligent workshop.

Bottle leak testing machine working principle: (Air leakage testing machine)

AQT bottle leak testing machine adopted difference pressure testing evolutionary system of Italy. Higher precision and good stable, we can detect leak hole range 0.05-0.1mm. When the leak tester testing, if the container/bottles has a big hole, the high pressure transducer will detected it soon, if just very tiny leak, the low pressure transducer will enlarge 10 times pressure with the bottle inside, the micro leak will be found by our machine. Some other leak tester from China just use one high pressure transducer, so it’s very different to test the tiny leak.

AQT 20-30L PE HDPE Container leak testing machine/ bottle leak tester description:

Testing Container range: 0.1-30L

Testing speed: 300-1000BPH

Conveyor length: 1500mm

Conveyor height adjustment: 700mm- 1100 mm Or1000mm-1400mm

Machine dimensions: 1.5*1.0*1.9(m)
