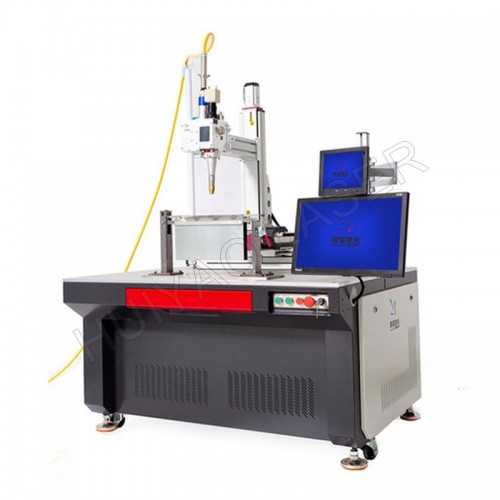

Pouch lithium battery polar ear laser welding machine
Product Description
Lithium battery module robot side seal laser welding machine has high equipment utilization rate which can weld a variety of products for lithium battery module or packs, prismatic lithium battery shell seal laser welding machine, lithium battery module busbar laser welding machine, Cylindrical lithium battery module tabs laser welding machine, lithium battery polar ear laser welding machine, lithium battery cover pole laser welding machine, prismathic lithium battery cover seal laser welding machine, prismatic lithium battery soft connection laser welding machine, prismatic lithium battery explosion valve laser welding machine
High positioning accuracy, simple operation, CNC programming or teaching method, easy to understand;
Easy to replace, modular design, quick fixture replacement.
Hot sale power battery laser welding machine technical parameter
|
Model |
HY-1000w-6000w |
|
Laser source |
1000w-6000w |
|
XYZ Travel |
Customizable |
|
R Axis |
Optional, 360° rotation |
|
Position Accuracy |
±0.02mm |
|
Repeatability Accuracy |
±0.01mm |
|
Motion Source |
Servo motor |
|
Max Speed |
500mm/s |
|
Cooling Method |
Water cooling |
|
Electricity Demand |
Customizable |
|
Laser Wavelength |
1080nm |
|
Observation Syatem |
CCD system |
|
Gas Protection |
Optional, Argon, Nitrogen |
|
Environmental Requirements |
No vibration, interference and ventilation |
|
Welding Penetration |
0.1~3.0mm |
|
MOQ |
1 set |
Application:
1. Welding of battery explosion-proof valve
Hot sale power battery laser welding machine is suitable for battery explosion-proof valve, the explosion-proof valve of the battery is a thin-walled valve body on the battery sealing plate. When the internal pressure of the battery exceeds the specified value, the valve body of the explosion-proof valve ruptures to prevent the battery from bursting. The safety valve has an ingenious structure, and this process requires extremely strict laser welding technology. Continuous laser welding can achieve high-speed and high-quality welding, and welding stability, welding efficiency and yield can be guaranteed.
2. Welding of battery tabs
Hot sale power battery laser welding machine is suitable for battery tabs, the tabs are usually divided into three materials. The positive electrode of the battery uses aluminum material, and the negative electrode uses nickel material or copper nickel-plated material. In the manufacturing process of power batteries, one of the steps is to weld the battery tabs and poles together. In the production of the secondary battery, it needs to be welded with another aluminum safety valve. Welding must not only ensure the reliable connection between the tab and the pole, but also requires a smooth and beautiful weld.
For more details please click: www.hyenergymachine.com
