Product Parameters

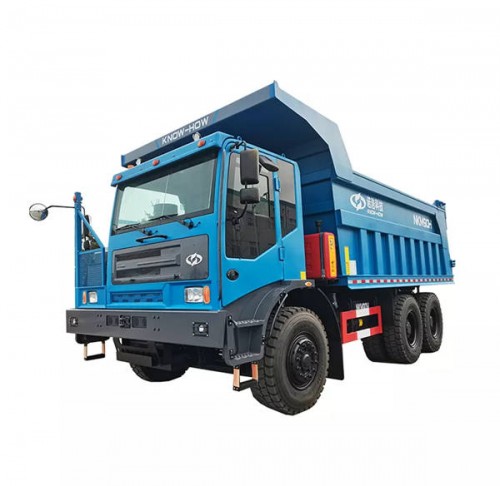

NKM90H 90 tons,rated loading 60 tons,
420hp strong power, diesel mining dump truck
Equipped FASTGEAR Mechanical automatic transmission 7DS220/MT
|
Vehicle Spec. |
Unit |
NKM90H |
|
Total Vehicle Weight |
KG |
90000 |
|
Rated Loading Weight |
KG |
59000 |
|
Tank Cubic Volume |
Cubic Meter |
33(Flat),36(Stack) |
|
Axle Loading Front/Middle/Rear |
t |
20+35+35 |
|
Engine Type/HorsePower |
Hp |
YC6K480-GT30(480hp) |
|
Gearbox type |
/ |
Faust 7DS220/MT(Mechanical Transmission) |
|
Steering system |
/ |
Full hydraulic steering |
|
Suspension System(Front/rear) |
/ |
Hydro-pneumatic spring/balance shaft general hanging |
|
Braket System |
/ |
Welded rigid tank frame /480x140 |
|
Vehicle Dimension |
mm |
9100*3450*4130 |
|
Driven Type |
/ |
6*4 |
|
Max Speed |
km/h |
43 |
|
Min Turning Radius |
m |
11.5 |
|
Vehicle Length |
mm |
9100 |
|
Front Middle Axle wheel base |
mm |
3800 |
|
Middle Rear Axle Wheel Base |
mm |
1560 |
|
Vehicle Height |
mm |
4130 |
|
Vehicle Width |
mm |
3450 |
|
Rear Wheel distance |
mm |
2526 |
We are one of the leading dump truck manufacturer, Our KNOW-HOW dump truck has high quality and competitive price.
