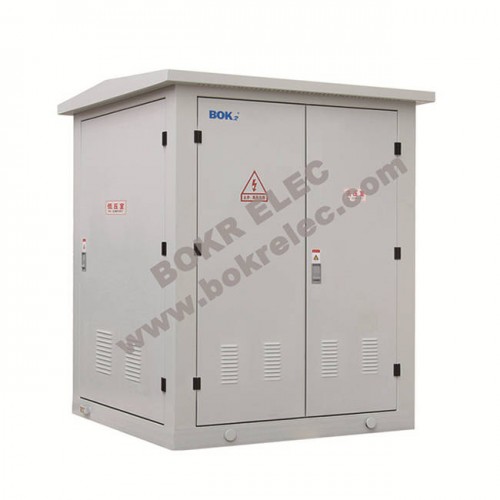

Mini European type compact substation 10kv 20kv 35kv

Product Description

Main Function And Features

Small volume, compact structure reliable power supply and easy for installation; it can realize single power supply, double power supply, or ring net supply with double-fuse protection, low running cost.The casing surface is treated by electrostatic painting and has good wearing resistance. It is applicable to both ring network and single/double power supply, is convenient  for shifting and can enhance the reliability of power supply. The transformer  adopts environment-friendly S11 series spiral core, non-excited voltage regulation, full-enclosed type, featuring energy saving and low noise. The amorphous alloy transformer is also available if required by clients. HV load switches and protective fuse are placed in oil filled iron tank, and the tank is full-enclosed structure. The LV room is provided with watt-hour meters, voltmeters and breakers of four outgoing lines, reactive power compensation can also be provided if necessary. It uses S11 series spiral core transformer, its idle loss is 30%~40% lower than S9, and noise 7~10dB lower than S9.

Outdoor compact transformer substation includes

(1)Medium voltage compartment, (2)Low voltage compartment (3) transformer compartment.

BOKR ELEC can make this substation as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,M.V.standard IEC62271-200.

HV & LV compartment is with completed function

1.)M.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with M.V.testing appliances to reach the demand of M.V.testing.

2.)The transformer compartment can choose S11 ,S13 or other low consumption oil immersed transformer and dry type transformer.  The transformer compartment  has automatic start wind cooling systems and lighting systems.

3.)Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to  be electrical power supply system,it has many function like light distribution,power distribution, reactive power,electrical power testing..etc to improve the power distribution quality and satisfy the user.
