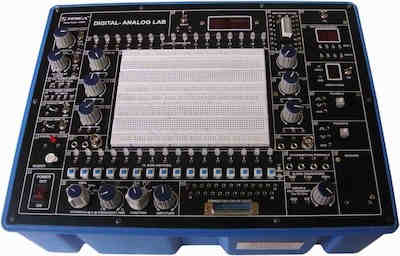

The DIGITAL-ANALOG LAB is intended for elementary as well as advance training of Digital & Analog electronics. The trainer covers regular digital & analog circuits by solder-less interconnections on breadboard and as well as compatible with all optional modules, through use of 2mm brass terminals and patch cords. Various clock generators, logic level input/output indicators and DC regulated power supplies etc. are in-built. The unit housed in attractive enclosure is supplied with mains cord, patch cords, Instruction manual and Component Set.

FEATURES:

- Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strip swith 100 tie points each, totaling to 1680 tie points. (Size:112mm x170mm)

- Regulated DC Power Supply : +5 V at 1 Amp, -5 V at 1Amp, +12 V/ 0 to 20V at 500mA, and -12 V/ 0 to -20 V at 500 mA

- AC Supply : 5-0-5V, 10-0-10V at 100mA. Can be used as 5V, 10V, 15V, 20V, and also as center tap

- Function Generator : Sine / Square / Traingular / Pulse waveform frequency 1 Hz to 110 Khz in 5 Steps. Variable in between steps. Sine / Square / Traingular waveform output 50mV ~ 10Vpp variable

- Clock Generators : 0.1Hz and 100 Hz, Independent fixed TTL 5V outputs

- Variable Clock Generators : low frequency variable clock 1 Hz to 10 Hz Fixed TTL 5V output

- Pulser Switch : 2 independent buffered bounce free manual pulser (useful for freezing the action of each stage of the counter after every clock pulse)

- Data Switch : 16 independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination

- Logic Indicators : 16 independent buffered logic level indicators for High / Low status indication of digital outputs

- Speaker : 8 ohms miniature speaker with terminations

- Digital meter (3½Digit) : Dual range DC Voltmeter 0-20V / Ammeter 0-200mA

- Continuity Tester : For testing the continuity. Provided with Beeper Sound
