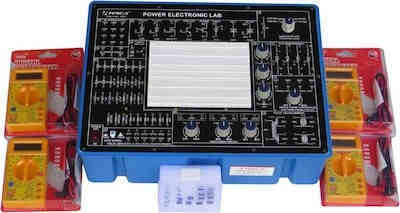

Power Electronics Lab
Visits: 246
    • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: Tesca
    Specifications: Power Electronics Lab
    Type New
    Date: 29-06-2022
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Power Electronics Lab is used to perform power electronics circuit experiments. It is very useful in power electronics laboratories for performing power experiments in colleges and universities. It is very for student to know about the characteristics of power electronics devices and the applications of power devices. The applications or power devices are in alarm circuit, lamp flasher, rectifiers, choppers, invertors. It is also used for commutation circuits.


    Technical Specifications:
    DC Power Supply on Board : ± 5V at 100mA
    : ± 12V at 150mA
    : ± 15V at 50mA
    : ± 35V at 50mA
    AC Power Supply on Board : 18V - 0V - 18V at 50mA
    : 15V - 0V - 15V at 50mA
    Triggering Circuit on Board : 5 gate signal output
    Frequency range : 40Hz to 900Hz Variable
    Amplitude : 12V
    PWM control of G1,G2,G3 and G4 Duty cycle control of “Gate” Signal is 0 to 100%
    Single Phase Rectifier : Firing angle control 0°-180° variables
    Firing Circuit on Board : Four gate signal output with isolation
    SCR Assembly : 4 SCRs 2P4M, 600V,2A
    Power Devices : IGBT-G4BC20S, MOSFET-IRF540, UJT-2N2646, DIAC-DB3, TRIAC-BT136, PUT-2N6027
    Circuit Components On Board : Capacitor 0.01uF, 0.047uF , 0.1uF, 0.33uF, 1uF/63V(4Nos.) 2.2uF/50V
    Diode 1N4007 (8Nos.)
    Zener Diode 9V (1Nos. )
    Inductors 10mH, (1Nos.), 68mH (2Nos.)
    Load Resistance 120E, 270E, 1K, 2K2, each 5W
    Resistance on Board (½ W) 22E/5W, 100E/2W, 220E/2W
    Resistance on Board(1/4W) 10K (3Nos.), 22K,33K,47K,
    Potentio Meter 4K7(2Mos.), 1M(1Nos.)
    Pulse Transformer on Board : 2 Nos. PT4502, 1:1 and one is PT4503 1:1:1
    Toggle Switch : SPST (1Nos.)
    Power Requirements : 220V ±10%, 50Hz
