Scope

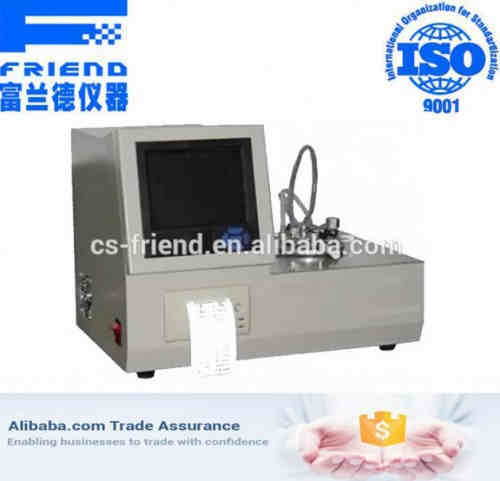

The instrument is in accordance with iso3679, GB / T 5208 "Determination of flash point - Rapid equilibrium closed cup method" requirements designed and manufactured to meet the petroleum, chemical, coatings, paints, railway, aviation, electricity, commodity inspection, military and Research units closed flash point of petroleum products fast testing requirements.

Features

1, the use of large-screen LCD, keypad operation, friendly man-machine interface

2, the instrument uses automatic design, automatic detection, automatic print results

3, semiconductor refrigeration device, equipment is small, cooling speed, no noise

4, test a small sample, each injection only 2 ml (solid or semi-solid samples each injection to 4 ml)

5, the instrument is fully in line with GB / T 5208 "Determination of flash point - Rapid equilibrium closed cup method" standard design for fast, low temperature closed cup flash point test purposes.

Technical Parameters

1 Power supply: AC 220V ± 10%, 50Hz;

2, the flash point detection range: -30 ~ 50 ℃;

3, the measurement accuracy: less than 2 ℃

4, temperature accuracy: ± 0.5 ℃;

5, ignition devices: electronic ignition point guns;

6. Cooling method: semiconductor cooling (external cold water cycle);

7, the power supply voltage: ~ 220V ± 10%, 50Hz;

8, Power consumption: less than 300W;

9, the ambient temperature: 5 ℃ ~ 30 ℃;

10, relative humidity: 30 ~ 80RH.
