Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier
Visits: 241
    • Price: $ 13,990.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Ordinary delivery: Express: EMS:
    Brand: Sino-NSH
    Specifications: The necessity for transformer oil dehydration and degassing
    Type New
    Date: 18-02-2017
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 100 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

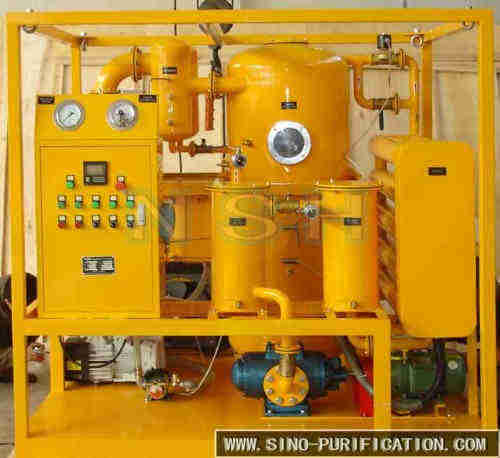

    The necessity for transformer oil dehydration and degassing is know for a long time. Sino-NSH Transformer oil purification plant removes moisture, gasses and solid particles from transformer oils. NSH transformer oil purification plants are built in different sizes with variable flow and highly efficient degassing chamber. Plants are of stationary or mobile design and can work on offline or online transformers.



    Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

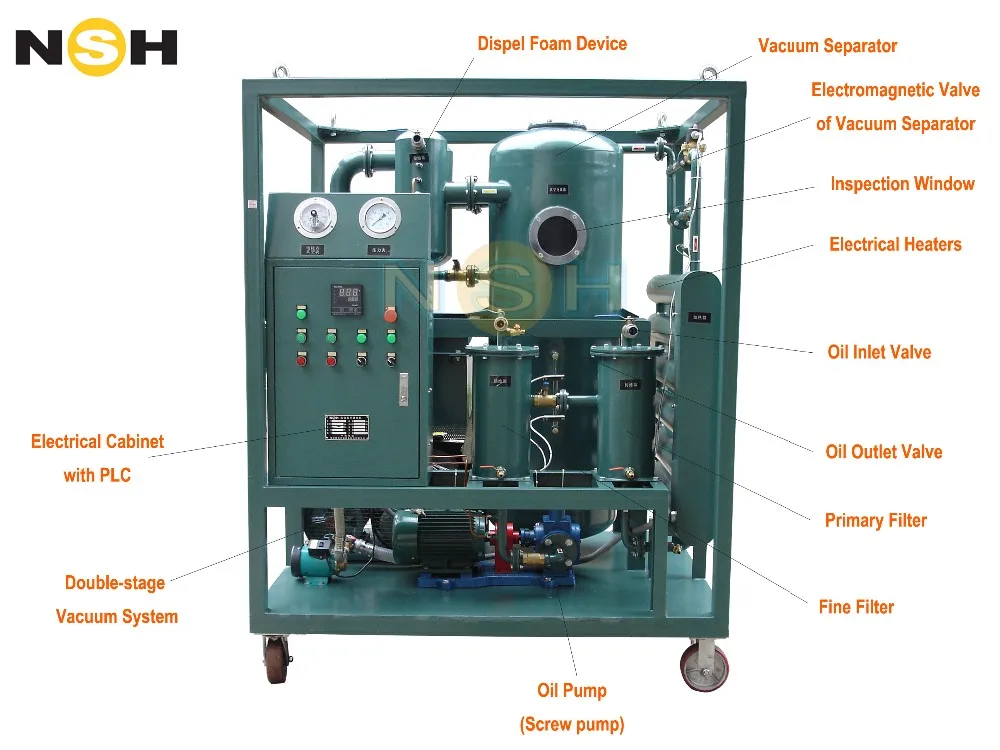

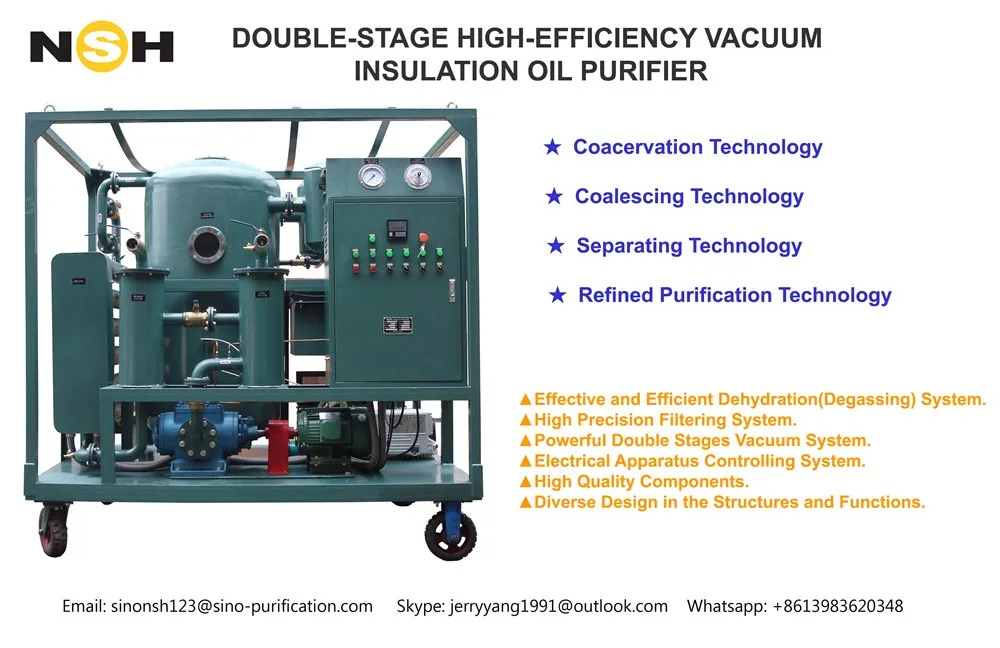

    VFD Series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

    Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier
    1. To remove impurities with high efficiency and effectiveness.
    2. Enhance the value of breakdown voltage greatly.
    3. Easy handling and maintenance.

    4. Online work.

    5. Lower maintenance and replacement expenses.
    6. Small size, light weight, low noise
    7. Various sizes and configurations (shield) available.



    Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

    Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

     Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

    Transformer Substation Equipment Supply Good Performance Vacuum Oil Purifier

    Oil Specification(after treatment)





    Item Unit After treatment
    Breakdown Voltage kV ≥75
    Moisture content PPM ≤4
    Gas content % ≤ 0.1
    Impurity size micron ≤ 5μm (or ≤ 1μm)



    Machine Specification

    Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
    Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
    Vacuum Range Mpa -0.092 ~ -0.099
    Working Pressure Mpa ≤0.2
    Max Vacuum Range Pa ≤50
    Temperature Range ℃ 45 ~ 65
    Dielectric Loss Tg ≤0.005
    Interfacial Tension mn/m ≥40
    Power Supply   380V/3P/50Hz(or as needed)
    Working Noise dB(A) ≤72 ≤78
    Heating Power Kw 30 48 72 90 120 180 240
    Total Power Kw 35 54 77 98 129 189 254
    Pipeline Diameter mm DN25 DN32 DN32 DN40 DN50 DN65 DN65
    Net Weight Kg 550 850 1000 1100 1400 1600 Same type of products More...
