1. Introduction:

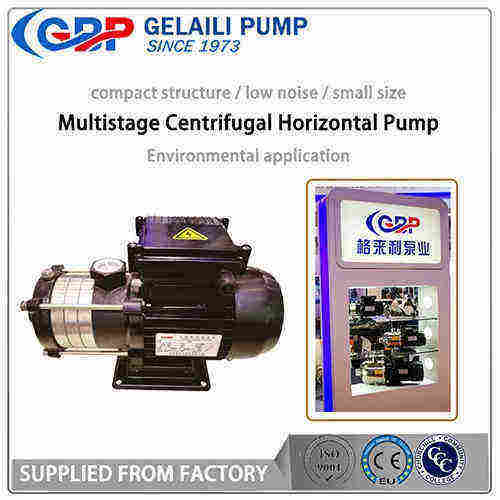

1. CHL stainless steel light duty pump horizontal multistage small centrifugal pump is designed as world advanced flow technic, which's impeller and wet parts are made of stainless steel.
2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.
3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
4. Axial inlet and radial outlet.
5. CHL is flow passage components stainless steel 304 or 316, CHLK is stainless steel 304 or 316 air-conditioning pump. CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.
2. Application
CHL, CHLK and CHLF(T) type pump are mainly used in industrial field:
Air-conditioning system
Cooling system
ro booster pump
Industrial cleaning
Water treatment (Water purification)
Aquiculture
Fertilizing / metering system
Environmental application
Other special applications
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
3. Motor specification:
TEFC motor 2-pole
Protection class: IP55
Insulation class: F
Standard voltage, 50Hz: 1×220-240V, 3×220-240V/380-415V
Standard voltage, 60Hz: 1×220-240V, 3×220-240V/380-415V
Single phase motor (max): 2.4KW
4. Operation condition
Liquid temperature:
Normal temperature type:-15°C to +70°C
Hot water type: -15°C to 110°C
Ambient temperature: up to +40°C
Max.operation pressure: 10 bar
Max. Inlet pressure is limited by max. Operation pressure
5. Product details:
| Working Principle: | Centrifugal |
| Main applications: | Water, Chemical |
| Driver: | Electric motor |
| Power Specs: | 220-240V single phase, 220-240V/380-415V three phase 50Hz or 60Hz |
| Max.permissible fluid temperature: | -15°C to +70°C(hot water type max 110°C) |
| Type of connection: | Inlet thread, hose, flange |
| Installation position: | Horizontal |
| Casing parts material: | Stainless steel 304 or 316 |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 4.4KW(6HP) |
| Maximum caliber: | 50mm(2inch) |
| Maximum discharge-side pressure: | 0.6MPa(6bar) |
| Maximum head: | 60m(196.8ft) |
| Flow rate range: | 0.5-28m3/h(2.2-123.20US.GPM) |
5.G-HLF(T)20-30
Motor:4KW
Capacity:20m3/h
Lift:34M
