Item No:G-CDL/CDLF 90-60
Motor:45KW
Capacity:90M³/H
Lift:134M
Size:1826H*460L*460W(MM)
Description:

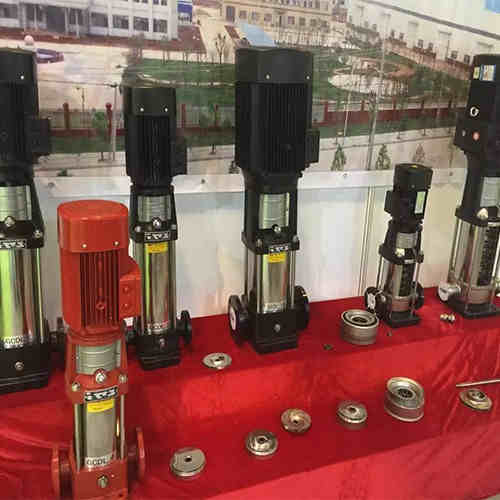

G-CDL/G-CDLF is a kind of non-self priming multistage centrifugal  water pump, which is driven by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet and outlet section with tie-bar bolts. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running,out-of-phaseand overload.
G-CDLF series pumps are multi-functional products. They can be used to convey various medium from tap water to industrial liquid at different temperature with different flow and pressure,they also can used to transport the liquid,which PH Value is 5-9,the liquid can be  slightly alkaline water,take off a mineral water,distilled water,swimming pool water,chloride liquid, they are anti-corrosion pumps.
Operation conditions:
Thin, clean, non-flammable and non-explosiveliquid containing no solid granules and fiber.
Liquid temperature:
Normal temperature type: -15 ~+70℃
Hot temperature type: -15 ~120℃
Electric Motor:
Full-enclosed air-blast two-pole standard
Protection class: IP55
Insulation class: F
Standard voltage, 50Hz: 1X220-230/240V, 3X220-240/346-380V, 3X220-240/380-415V,3X380-415V
Ambient temperature:up to 40
Altitude:up to 1,000m

Application:
Water supply and pressure boosting: Pressure boosting in buildings, hotels, residential complexes, pressure booster stations, supply of water networks, pressure boosting for industrial water supply.
Light industry: Washing and cleaning systems, car washing facilities fire fighting systems, process water systems, machine tools (cooling lubricants).
Heating, ventilation and air-conditioning: boilers, induction heating, heat exchangers, refrigerators, cooling towers and systems, temperature control systems.
Irrigation and agriculture: greenhouses, sprinkler irrigation, flood irrigation.
Water Treatment: Water softeners and demineralization,reverse osmosis systems, distillation systems, filtration, ultra-filtration system.
