Product details

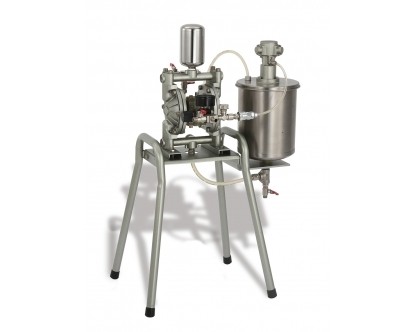

Multi-function Diaphragm Pump DP-15SS
Visits: 168
  • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: Multi-function Diaphragm Pump DP-15SS
    Type New
    Date: 19-06-2018
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 0 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     DP-1SS , DP-1RSS , DP-15SS , DP-15RSS,

    3/8" Double Diaphragm Pump


    Specifications :
    Fluid Inlet & Outlet Dimension :  3/8" PT
    Air Inlet & Outlet Dimension : 1/4" PT
    Pressure ratio : 1:1
    Transmitting capacity : 5L/min , 0.4kg/cm²
                                             7.5L/min , 1.0kg/cm²
                                             10.5L/min , 2.0kg/cm²
    Used Air Pressure : 1~5 kg/cm²
    Max. Painting Pressuer : 5kg/cm²
    Max. Pump Speed : 160 times / min (5kg/cm²)
    Min. Pump Speed : 80 times / min (0.4kg/cm²)
    Max. Fluid temperature : 45°C
    Body material of construction : Aluminum
