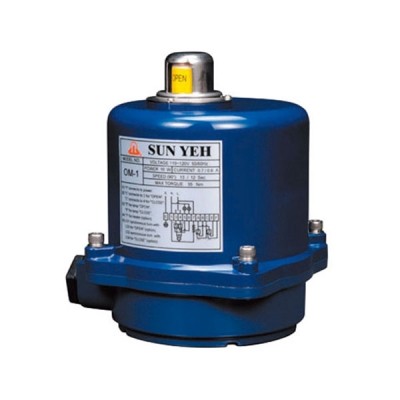

Specification:
Power：10W
Max Torque：35 N.m/310 lb.in
Speed：12 Sec/90°
Weight：2 kg/4.41 lb
Manual Override：Lever

Mounting Flange（ISO 5211）：F05/F03

Enclosure :
IP67、NEMA 4X : Water-proof and dust-proof enclosure.
Cover material: Dry powder coating aluminum alloy.
Base material : Dry powder coating aluminum alloy.
Motor :
F (Standard) or H (Optional) insulation class for all models.
Built-in thermal protection prevents motor burning out.
AC motor：125±5℃/257±9℉
DC motor：90±5℃/194±9℉

Duty Cycle :
OM-1：30％ duty cycle (Standard Model)
OM-1：75％ duty cycle (Optional)
Working Conditions :
Ambient temperature：-30℃ ~ +65℃ / -22℉ ~ +149℉
The humidity：30％ ~ 95％
Position Indicator :
All models have continuous mechanism position indicator on the top of actuator cover.
Gear Train :
Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.
Conduit entrance :
Standard : 1/2" PS
Optional : 3/4" PF, 1/2" NPT, M20
Various voltage :
AC/DC 12V
AC/DC 24V
AC 110/220V，1-Phase
Enclosure :
Nylon coating
E.D. coating
Epoxy coating
Motor insulation class :
Standard : F class
Optional : H class
Fieldbus connectivity :
Modbus
Working angle :
Standard : 0~90°
Optional : 91~270°
