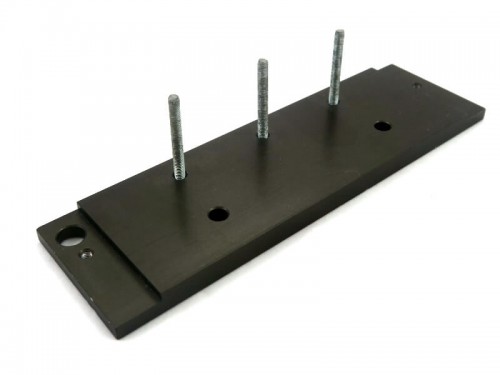

Product Features
Width [mm] 38
Height [mm] 6
Length [mm] 131
Material Aluminum 6061-T6
Surface MIL-A-8625 Type III Class 1
Weight [g] 83


DESCRIPTION

MIL-A-8625 Type III Class 1 (Non-Dyed) and Class 2 (Dyed)

Magntek Electronic Inc. offers aluminum hard coat anodizing (Type III) at our state-of-the-art facility in Taiwan. We also provide standard aluminum anodizing (Type II) services.

Hard Coat Aluminum Anodizing

Aluminum Hard Coat Anodizing is similar to standard anodizing in that both are controlled electrochemical processes. The key difference is that hard coat anodizing provides a surface that is more wear resistant and has a smoother and harder surface than standard anodizing.

Modified hard coat anodizing which sometimes called hard coating or hard anodizing is an electrochemical process that provides corrosion protection to aluminum and aluminum alloy parts or pieces


During the hard coat anodizing process, a uniform aluminum the oxide layer is formed on the surface that penetrates into the material. The hard coat anodizing process involves submerging the part(s) in a sulfuric acid bath at approximately 32°F, with a density of 23 to 37 amps, for anywhere from 22 minutes to two hours. The amount of time spent submerged determines the thickness of the coating.

While aluminum naturally forms the oxide on the surface over time, the aluminum oxide that is formed on the surface during the hard coat anodizing process is more uniform, dense, and much harder than with natural oxidation.


Hard Coat Anodized Aluminum is used for the following reasons:

Corrosion resistance
Increase wear resistance
Increase hardness
Electrical Resistance
Lightweight properties
Flame resistance
Temperature Resistance

ISO 9001 2015 certificated
