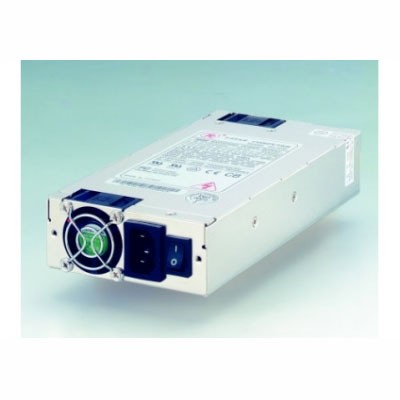

1U Single Power Supply TC-1U35
Visits: 140
    • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: 1U Single Power Supply TC-1U35
    Type New
    Date: 24-02-2019
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 0 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details



    (AC to DC)

    model：TC-1U35

    Safety Approval

    Standard 1U dimension

    Two 40mm Fans

    Meet CE Rohs 2.0 2011/65/EU



    Description:

    1. Watts:350W

    2. Input:

    VOLTAGE: 90~135VAC or 185~260VAC (115/230 AUTO SELECTABLE)

    FREQUENCY : 50/60Hz.

    INPUT CURRENT: 8A for 115V AC, 4A for 230VAC.

    INRUSH CURRENT: 60A for 115VAC, 80A for 230VAC

    3. Dimensions:

    L x W x H:  200 x  100  x 40.5 (mm)  /  7.87 x 3.94 x 1.59 (inches)

    4. Others Certificates:RoHS 2.0



    FEATURES:

    1.     Meet CE RoHS 2.0 2011/65/EU

    2.     Auto Select AC input.

    3.     Efficiency: ≧ 70﹪at full load.(Nominal Line)

    4.     Hold-Up Time: 16ms at maximum load & normal input voltage.

    5.     OVER VOLTAGE PROTECTION.

    6.     SHORT CIRCUIT PROTECTION.

    7.     OVER POWER PROTECTION.

    8.     NO LOAD OPERATION.

    9.     ENVIRONMENT TEMPERATURE

    Operation Temperature: 0℃ to 40℃

    Cooling: By forced air

    Storage Temperature:-20℃ to 70℃

    Humidity: 5 to 90﹪non-condensing.

    10.   RELIABILITY

    MTBF OF POWER SUPPLY ELECTRONIS

    100,000 hours at full load and 25℃ ambient temperature

    LIFE EXPECTANCY OF FAN

    40,000 hours at 40℃
