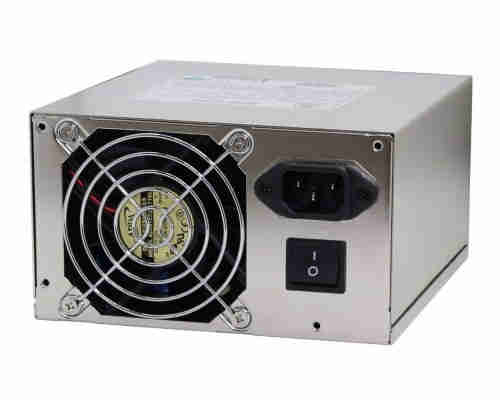

(AC to DC)

Safety Approval

Meet CE Rohs 2.0 2011/65/EU

Meet REACH

Operation Temp.: 0°C~50°C

High Efficiency

Description:

1.Watts:400W

2.Input:

Voltage: 100 - 240Vac Full Range

Frequency: 50 - 60Hz.

Input current: 10 for 115V AC, 5A for 230VAC.

Inrush current: 25A for 115VAC, 50A for 230VAC

3. Dimensions:

L x W x H:  140 x  150  x 86 (mm)  /  5.51 x 5.91 x 3.39  (inches)

4. Others Certificates:REACH/RoHS 2.0

FEATURES:

1.     ATX PS II

2.     Full Range AC Input

3.     Efficiency: The minimum efficiency shall be 80% with full load and 115Vac/60Hz.

4.     Hold-Up Time: The output voltages stay in regulation at least 18ms with 70% load after loss of AC input.

5.     Over Current Protection

6.     Over Voltage Pretection

7.     Short Circuit Protection

8.     Over Temperature Protection

9.     Environmental Requirement:

Temperature:

Operating :0℃ to +50℃

Non Operating: -20℃ to +70℃

Humidity:

Operating : 5% to 95%, non-codensing

Non Operation: 20% to 90%, non-condensing

Altitude:

Altitude during operation: Up to 5000m

Cooling Method:

By ball bearing DC fan.

10.   Reliability MTBF : Using MIL - HDBK -217F the calculated MTBF＞100,000 hours at 25℃.
