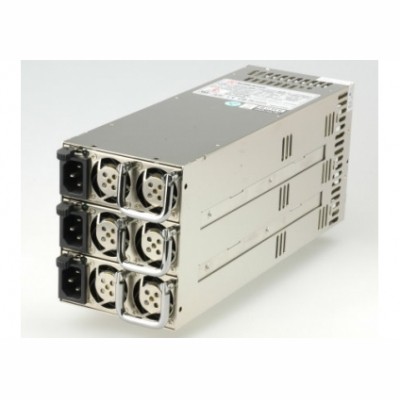

N+1 Redundant Power Supply TC-950RVN3
Visits: 151
    • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: N+1 Redundant Power Supply TC-950RVN3
    Type New
    Date: 24-02-2019
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 0 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details



    (AC to DC)

    Safety Approval

    Meet CE Rohs 2.0 2011/65/EU

    Meet REACH

    Operation Temp.: 0°C~45°C



    Description:

    1.Watts: 950W

    2.Input:

    VOLTAGE: 100 - 240Vac Full Range

    FREQUENCY: 50 - 60Hz.

    INPUT CURRENT: 17A for 115V AC, 7A for 230VAC.

    INRUSH CURRENT: 60A for 115VAC, 120A for 230VAC

    3. Dimensions:

    L x W x H:  300 x  101  x 125 (mm)  /  11.81 x 3.98 x 4.92 (inches)

    4. Others Certificates:REACH/RoHS 2.0



    FEATURES:

    1.     Redundant Power Supply

    2.     Hot-swappable/Hot-pluggable, High-Density Redundant power supply

    3.     Full Range AC Input.

    4.     Efficiency:76% Typical at full load

    5.     Hold-Up Time: 16ms at maximum load & normal input voltage.

    6.     OVER VOLTAGE PROTECTION.

    7.     SHORT CIRCUIT PROTECTION.

    8.     OVER POWER PROTECTION.

    9.     ENVIRONMENT TEMPERATURE

    Operation Temperature: 0℃to +45℃

    Cooling: BY BALL BEARING DC FAN.

    Storage Temperature:-20℃ to 70℃

    Humidity: 5% to 95%, non-condensing

    10.   RELIABILITY

        Mean Time Between Failure(MTBF)

        Using MIL - HDBK -217F the calculated MTBF＞100,000 hours at 25℃.
