(AC to DC)

Safety Approval

Meet CE Rohs 2.0 2011/65/EU

Meet REACH

Operation Temp.: 0°C~40°C

High Efficiency

Low Noise

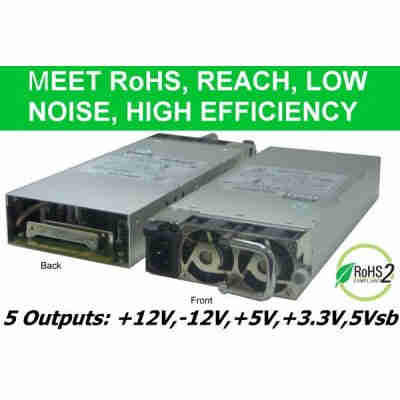

Description:

1.Watts：460W

2.Input：

Input voltage: 100 - 240Vac Full Range.

Frequency: 50 - 60 Hz.

Input Current: 10A for 115VAC,  5A for 230VAC.

Inrush Current: 25A for 115VAC, 50A for 230VAC.

The Minimum efficiency of the power supply is 80% at full load and 1150Vac/60HZ input.

The minimum power factor at full load shall be 0.98 / 115V 60 Hz and 0.96 / 230V 50 Hz.

3. Dimensions:

L x W x H:  247.9 x 106 x 40 (mm)  /  9.76 x 4.17 x 1.57 (inches)

4. Others Certificates:REACH/RoHS 2.0

FEATURES:

1.     Meet CE RoHS 2.0 2011/65/EU and REACH.

2.     Meet the WEEE Directive (2002/96/EC))

3.     Temperature Range: Operating 0℃ ~ 40℃, Storage –20℃ ~ 70℃

4.     Hold up time: 16 ms Minimum at full load & Normal input voltage.

5.     OVER POWER PROTECTION: 110~150%

6.     OVER VOLTAGE PROTECTION

7.     OVER CURRENT PROTECTION

8.     SHORT CIRCUIT PROTECTION

9.     Remote On/Off Control.

10.   Power Good Signal: On Delay 100ms to 500ms, off delay 1ms.

11.   Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC.

12.   EMI noise Filter: FCC Class B, CISPR22 Class B
