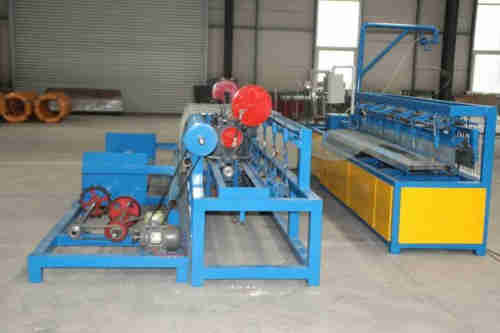

Machine description
1. Chain link fence machine also named diamond wire mesh machine,cyclone fence machine
2. The wire go through dies,and become a half diamond shape.Then two wires weave together and become diamond wire mesh.
3. Auto mesh rolling machine can gather the mesh and takes off easily
4. Touch screen and buttons can set the weave speed and mesh length
Machine technical parameters
|
Wire diameter |
1.8 mm ~ 4.0mm，single wire |
|
Mesh opening |
30X30-100X100mm |
|
Material |
Galvanized Wire; PVC Coated Wire; Black Annealed Wire; |
|
Mesh Width |
600-4000mm MAX,adjustable |
|
Weaving speed |
60-90 m2/HOUR |
|
POWER |
3.0KW 1set 4.0KW 1 set 0.12KW 1set |
|
DIMENSIONS |
About 3000L×2800W×2500H |
|
Machine life |
Over 10 years |
Ⅲ
Advantage
1. China famous servo motor,save energy
2. PLC touch screen on the main machine,take place of old cabinet,save space and
operate more easily and convenient
3. PLC control system,weave more precise
4. Machine voltage can be adjusted by your country need
5. One set twisted mould for free
6. Mesh length and weave speed can be adjusted by control cabinet
7. Production 60-90 m2/hour
8. Different buttons on the machine can satisfy different need
9. Emergency stop button for wire broken problem.
10.Factory long guarantee time,3years
11.Straightening wheel make input wire straightly
12.Mesh support handles can support the mesh not deformation.
13.Supply 2 kinds of side making machine，other factories supply only 1 kind.
