Product Description

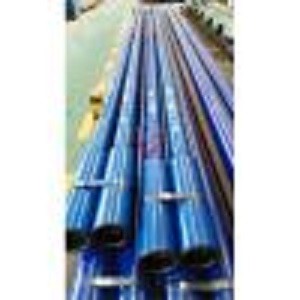

The heavy weight drill pipe is the transition from flexible drill pipe to rigid drill collars during drilling. It is often substituted for drill collars to reduce friction in horizontal and extended-reach Wells. Reduces stress concentration between drill pipe and drill collar, prevents differential pressure sticking, reduces friction and torque, and prevents excessive buckling in the thickened middle area.
Type: Integral and Friction Weld
Friction Weld Type Tool Joint: AISI 4145HM
Tube: AISI 1340 or Equivalent
|
Size |
Tube |
Tool Joint |
Min Drift Dia. |
||||||||||
|
Pipe ID |
Center Upset Dia. |
Upset Length |
Max Elevator Upset |
Connection Type |
Tool Joint OD |
Tool Joint ID |
Pin Length |
Box Length |
|||||
|
in |
mm |
in |
in |
in |
in |
in |
in |
in |
in |
||||
|
31/2 |
88.9 |
2 1/4 |
4 |
25 |
3 7/8 |
NC38 |
4 3/4 (4 7/8) (5) |
2 1/4 |
27 |
21 |
2 |
||
|
2 1/16 |
2 1/16 |
1 13/16 |
|||||||||||
|
4 |
101.6 |
2 1/2 |
4 1/2 |
25 |
4 3/16 |
NC40 |
5 1/4 |
2 1/2 |
27 |
21 |
2 1/4 |
||
|
2 9/16 |
2 9/16 |
2 5/16 |
|||||||||||
|
41/2 |
114.3 |
2 11/16 |
5 |
25 |
4 11/16 |
NC46 |
6 1/4 |
2 11/16 |
27 |
21 |
2 7/16 |
||
|
2 3/4 |
2 3/4 |
2 1/2 |
|||||||||||
|
2 13/16 |
2 13/16 |
2 9/16 |
|||||||||||
|
5 |
127.0 |
3 |
5 1/2 |
25 |
5 1/8 |
NC50 |
6 5/8 |
3 |
27 |
21 |
2 3/4 |
||
|
51/2 |
139.7 |
3 1/4 |
6 |
