Specification

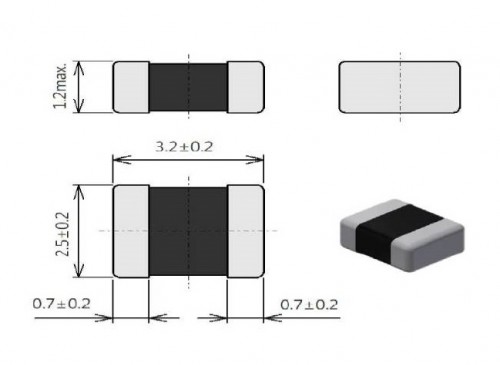

Model: EMP322512        L(uH)=0.47、Rdc (mΩ).Max[Typ.]=27[21]、I sat(A)Max=8、I temp(A)Max=5

Features

1.         High magnetic flux saturation density characteristics by metal magnetic material.

2.         Low DC resistance by flat wire.and achieve high conversion efficiency and lower temperature rising.

3.         Magnetically shielded structure to accomplish high resolution in EMC protection.

4.         High mounting stability due to Chip shape

5.         High reliability by original structure

6.         For general electronic equipment.

MU-HUA is a professional inductor manufacturer built up by a group of expert engineers and management of SMD power inductor and SMD common mode choke.  An inductor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it.  An inductor typically consists of an insulated wire wound into a coil.  Prioritizing customer satisfaction, we stringently follow protocols in design, R&D and manufacturing.
