You are here »Home»Products »Everything Else»All others» DN 15-250mm Cast Steel Globe Valve globe valve manufacturer GOST SERIES
Product details

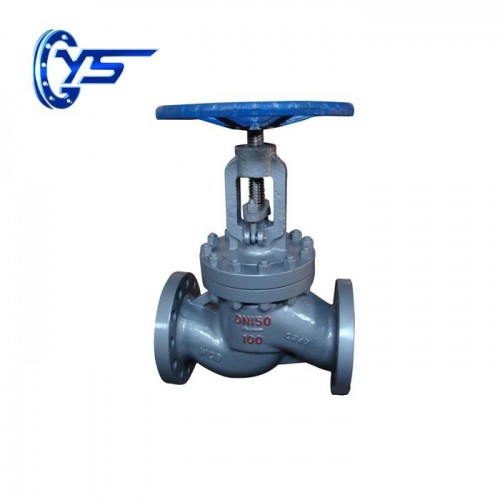

DN 15-250mm Cast Steel Globe Valve globe valve manufacturer GOST SERIES
Visits: 114
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: HBYS
    Specifications: --
    Type New
    Date: 15-08-2020
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     DN 15-250mm Cast Steel Globe Valve  globe valve manufacturer  GOST SERIES

    Medium temperature: ≤425 ℃
    Operating mode: manual / electric
    medium: water, oil, steam, etc.
    Caliber: DN50-1000
    Pressure: 1.6-16.0mpa
    Body material: WCB
    Connection method: flange



    Square Flange Globe Valve Details

    Cast Steel Globe Valve Material of main parts of cast steel globe valve

    Part Name

    material

    Body / bonnet

    WCB

    gate

    WCB

    Valve stem

    WCB / 2cr13

    Stem nut

    Ductile iron / brass



    Cast Steel Globe Valve Performance specifications of cast steel globe valve

    model

    Nominal pressure
    (mpa)

    Test pressure (mpa)

    proper temperature

    Applicable medium

    Strength (water)

    Sealed (water)

    J41 / 941H / Y-16C

    1.6

    2.40

    1.80

    —29—425 ° C

    Water, steam, oil, etc.

    J41 / 941H / Y-25C

    2.5

    3.80

    2.80

    J41 / 941H / Y-40C

    4.0

    6.15

    4.51

    J41 / 941H / Y-64C

    6.4

    9.75

    7.15



    External dimensions and connection dimensions of cast steel globe valve

    model

    Nominal diameter
    (mm)

    Size (mm)

    L

    D

    D1

    D2

    bf

    z-φd

    H1

    J41 / 941H / Y-16C

    15

    130

    95

    65

    45

    14-2

    4 * φ14

    205

    20

    150

    105

    75

    55

    14-2

    4 * φ14

    211

    25

    160

    115

    85

    65

    14-2

    4 * φ14

    223

    32

    180

    135

    100

    78

    16-2

    4 * φ18

    250

    40

    200

    145

    110

    85
