Product details
10X38 HRC cylinder photovoltaic solar fuse link 12A,15A,16A
Visits: 104
Price: $ 0.00 Piece(s) / each
(0 means negotiable)
Freight fee: Ordinary delivery: Express: EMS:
Brand: Solarson
Specifications: 10X38
Type New
Date: 31-07-2019
Business type: Retail
Seller details: See Right Sidebar section
Quantity: Piece(s)( Stock 100000 Piece(s))

Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
Product details

 Yueqing Aidun Electrical produce “SOLARSON”brand SSPV series of   10X38mm 1000VDC MC4 solar panel fuse +holder is designed to provide over-current protection for solar arrays. The use of a fuse can protect your solar array from unnecessary damage from an over-current event.



Rated Current:1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A

Rated Voltage: 1000 V DC

Rated breaking capacity:DC 33kA

Operating class gPV  and UL PV fuse link for Solar protection





10X38 1000VDC fuse -



Item

Product type

Size

Rated Voltage

(V)

Rated Current(A)

Installation Method

Drawing No.

001

SSPV-30

10X38

1000VDC

1,2,3,3.5,4,5,6,8,10,12,15,

16,20,25,30

Cylindrical

Drawing 1

002

SSPV-30B

10X38

1000VDC

1,2,3,3.5,4,5,6,8,10,12,15,

16,20,25,30

Bolt fixing

Drawing 2

003

SSPV-30P

10X38

1000VDC

1,2,3,3.5,4,5,6,8,10,12,15,

16,20,25,30

PCB fixing

Drawing 3

004

SSPV-30T

10X38

1000VDC

1,2,3,3.5,4,5,6,8,10,12,15,

16,20,25,30

In-line with crimp terminal

Drawing 4

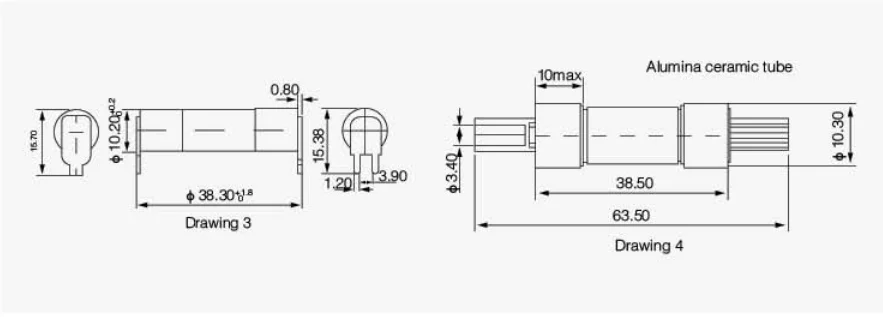

10X38 1000VDC drawing110X38 1000VDC drawing2





Electric Sales Department :

Alibaba trade manager:chinaelton

contact: Bruce Lee

Email:sales#aidunelectric.com

Mobile: +86 13626533618(24H)

QQ:1335030666

Wechat&what'sApp:+86 13626533618





Company imformation

equipment01equipment02equipment03

Package and shipping

Packaging Details



NH00C: QTY: 180PCS; GW: 21KGS NW: 21KGS; MEAS: 35x25x22.5cm



NH00:   QTY: 100PCS; GW: 21KGS NW: 20KGS; MEAS: 43x17x27cm



NH0:     QTY: 72PCS;   GW: 18KGS NW: 17KGS; MEAS: 37x27x20cm



NH1:     QTY: 48PCS;   GW: 21KGS NW: 20KGS; MEAS: 43x28.5x22cm



NH2:     QTY: 36PCS;   GW: 24KGS NW: 23KGS; MEAS: 38x31.5x24cm



NH3:     QTY: 24PCS; GW: 22KGS NW: 21KGS; MEAS: 45x32x20.58cm



Delivery term & payment

FAQ

Q1:If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?

A1:All your enquiry will be replied in 24hours.



Q2:Can I get a sample before the order because I really don't how is your product quality?

A2:Of course! We can offer free samples , We  think sample order is the best way to build the trust. Please send the enquiry to us and get the free sample!



Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A3:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
