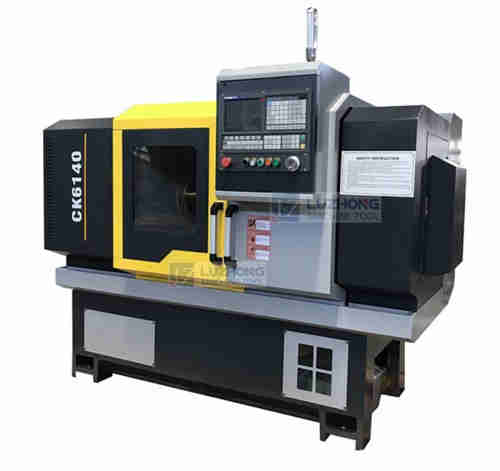

CNC Horizontal Lathe Factory China
Features：
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration :manual chuck
Optional configuration:spring collet ,hydraulic chuck ,automatic feeding device ,gang type tools
Application：
Machine can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as processing ,and also can process the single and multile threads in metric ,inch and other standards .
Product main technical Specifications:
|
Specifications |
Unit |
CK6140V |
|
Max.swing over bed |
mm |
Φ400 |
|
Max.swing over cross slide |
mm |
Ф240 |
|
X/Z axis travel |
mm |
280/750 |
|
Spindle nose |
|
A2-6 |
|
Spindle bore |
|
Ф48/82 |
|
Bar capacity |
|
Φ41/65 |
|
Spindle speed |
|
Ф48 |
|
Spindle speed |
rpm |
150-2000/150-1800 |
|
Chuck size |
mm |
200/250 |
|
Spindle motor |
KW |
5.5/7.5 |
|
X/Z axis repeatability |
mm |
±0.005 |
|
X/Z axis feed motor torque |
N.m |
4/6 |
|
X/Z axis rapid traverse |
m/min |
8/10 |
|
Tailstock sleeve dia. |
mm |
Ф60 |
|
Tailstock sleeve travel |
mm |
100 |
|
Tailstock sleeve taper |
# |
MT4 |
|
Tool post type |
|
4 station electtic tool post |
|
Cutting tool shape size |
mm |
20x20 |
|
Guide form |
|
Double Mountain Guide |
|
Total power capacity |
KVA |
11 |
|
Machine dimension(L×W×H） |
mm |
2200X1160X1620 |
|
N.W. |
kg |
1800 |
