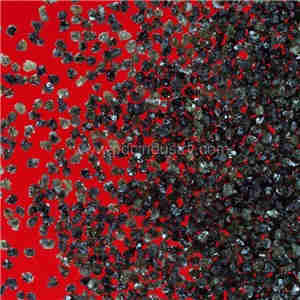

Introduction of Resin Bond Mesh Diamond

Our's resin bond mesh diamond is a synthetic material with a friable crystal structure for use in vitrified and resin bond systems. The crystals are irregular, elongated and rough-edged, and are suitable for grinding tungsten carbide, ceramics and glasses.

The friability or breakdown of the diamond is a function of its polycrystalline structure and metallic inclusions within the grains. Grains are microfractured during grinding and new edges formed for efficient, free-cutting action.

Resin bond mesh diamond is typically 40µm and larger in particle size and is available in standard electroless nickel (Ni) coatings of 30% and 56% by weight, and a copper (Cu) coating of 50% by weight.

Resin Bond Mesh Diamond: R15

Rough and very irregular, Highest Friable, Yellow Green Color

Best self-sharpening performance and high thermal stability, suitable for creep grinding, the good choice for high precision grinding where premium surface finish and form remaining are demanded.

Available sizes:60/80 through 400/500

Resin Bond Mesh Diamond: R23

Irregular, medium-high Friable, Yellow Green Color.

Good combination of high free cutting and high surface finish. The first choice for the products with critical cost.

Available sizes:60/80 through 400/500

Resin Bond Mesh Diamond: R21

Irregular, low Friable, light Green Color

Similar to R23

Available sizes:60/80 through 400/500

Resin Bond Mesh Diamond: B100

Semi-blocky, very low friability, Black

Premium performance in thermal stability

For Vit bond system with good profile retention and sharpness

Available sizes:

We are a technology-based enterprise integrating technology development, production and service of diamond polishing pads. We also provide industrial diamond for sale.

Our website:www.pdcindustry.com
