PRODUCT DESCRIPTION

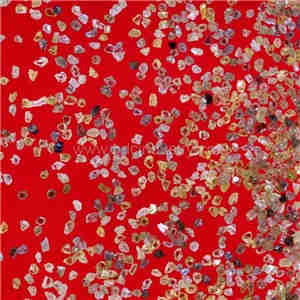

Our metal bond mesh diamond is a synthetic material, grown slowly compared to resin bond diamond, resulting in monocrystalline structures with high toughness. The typical blocky crystals are suitable for resin, metal and electroplated bond systems in applications such as grinding ceramics, cemented carbides and glasses.
Our bond mesh diamond is typically 40µm and larger in particle size and is available in standard electroless nickel (Ni) coatings of 30% and 56% by weight, and a copper (Cu) coating of 50% by weight. Our’s electroless coated particles extend grinding wheel performance through improved heat removal from the grinding zone and increased abrasive adhesion in the bond system.
Metal Bond Mesh Diamond: M19
Medium toughness, Irregular shape, new cutting edges always occur during the grinding process. The texture surface offers good bond combining ability.
For resin bond and Vitrified bond system
Available Sizes: 60/70 through 500/600
It is also available in Ni coating
Metal Bond Mesh Diamond: M20
Medium Toughness, Rough and Irregular crystal,
Similar to M19, but more durable.
For resin bond and Vitrified bond system
Available sizes: 80/100 through 500/600
It is also available in Ni coating
Metal Bond Mesh Diamond: M35
Medium-High Toughness, Angular shape.
Excellent free cutting ability and more durable than M40.
For resin bond and Vitrified bond system
Available sizes: 30/40 through 120/140.
It is also available in Ni coating
Metal Bond Mesh Diamond: M40
Medium toughness, Angle crystal, Friable.
Excellent free cutting ability.
For Resin bond, Electroplated and Vitrified bond system.
Available Sizes: 30/40 through 500/600
It is also available in Ni coating
Metal Bond Mesh Diamond: M45
High Toughness, Semi-blocky
It combines the long using life and high working efficiency.
For Resin Bond system, Vitrified bond system, Electroplated tools.
Available Sizes: 40/50 through 500/600
It is also available in Ni coating and Ti coating.
Metal Bond Mesh Diamond: M50
High Toughness, Blocky
Durable provides the shining surface on the workpiece.
For Resin Bond system, Vitrified bond system, Electroplated tools.
Available Sizes: 40/50 through 500/600
It is also available in Ni coating and Ti coating.
diamond powder Available sizes:
|
ANSI |
30/40 |
40/50 |
50/60 |
60/80 |
80/100 |
100/120 |
120/140 |
140/170 |
170/200 |
200/230 |
230/270 |
270/325 |
325/400 |
400/500 |
|
FEPA |
D602 |
D427 |
D301 |
D252 |
D181 |
D151 |
D126 |
D107 |
D91 |
D76 |
D64 |
D54 |
D46 |
D32 |
|
EA-M19 |
|
|
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
EA-M20 |
|
|
|
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
EA-M30 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
